Front Bucket Seat Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the plastic caps and the bolts securing the rear portion of the front seat to the floor.

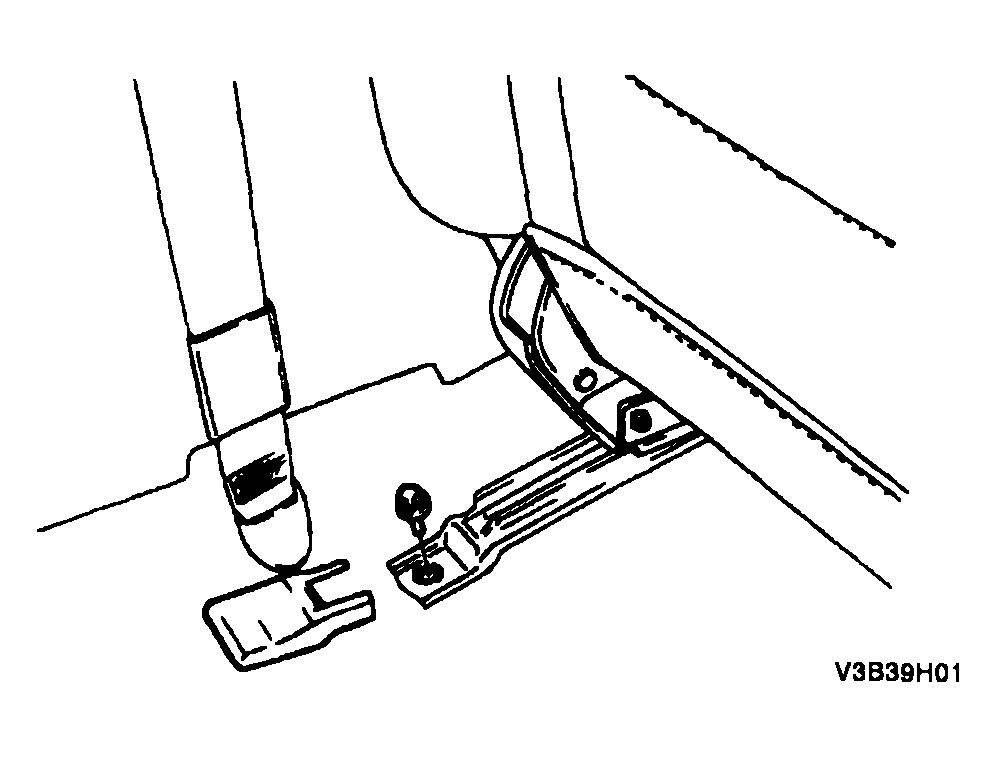

Fig 1: Removing Bolts Securing Rear Portion Of Front Seat To Floor
Courtesy of SUZUKI OF AMERICA CORP.
Remove the plastic caps and the bolts securing the front portion of the front seat to the floor.
Disconnect the electrical connectors.
Remove the seat.

Fig 2: Removing Plastic Caps From Front Portion Of Front Seat
Courtesy of SUZUKI OF AMERICA CORP.

This vehicle is equipped with front bucket seats with separate, adjustable head restraints, and a three-passenger rear bench seat with an optional split folding rear seat. The front bucket seats also have a recline, a height, and a lumbar adjustment. A power driver seat is optional. Seat cushions and seatbacks have formed foam pads, which fit the contours of the full panel seatback frame assembly and the designed contour of the seat cushion frame.
