Front Bucket Seat Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat.
  2. Connect the electrical connectors.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  3. Install the bolts into the front portion of the front seat.

    Tighten

    Tighten the front seat-to-floor bolts to 25 N.m (18 lb-ft).

  4. Install the plastic caps.
    Fig 1: Installing Plastic Caps Into Front Portion Of Front Seat
    G04104558Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the bolts into the rear portion of the front seat.

    Tighten

    Tighten the front seat-to-floor bolts to 25 N.m (18 lb-ft).

  6. Install the plastic caps.
  7. Connect the negative battery cable.

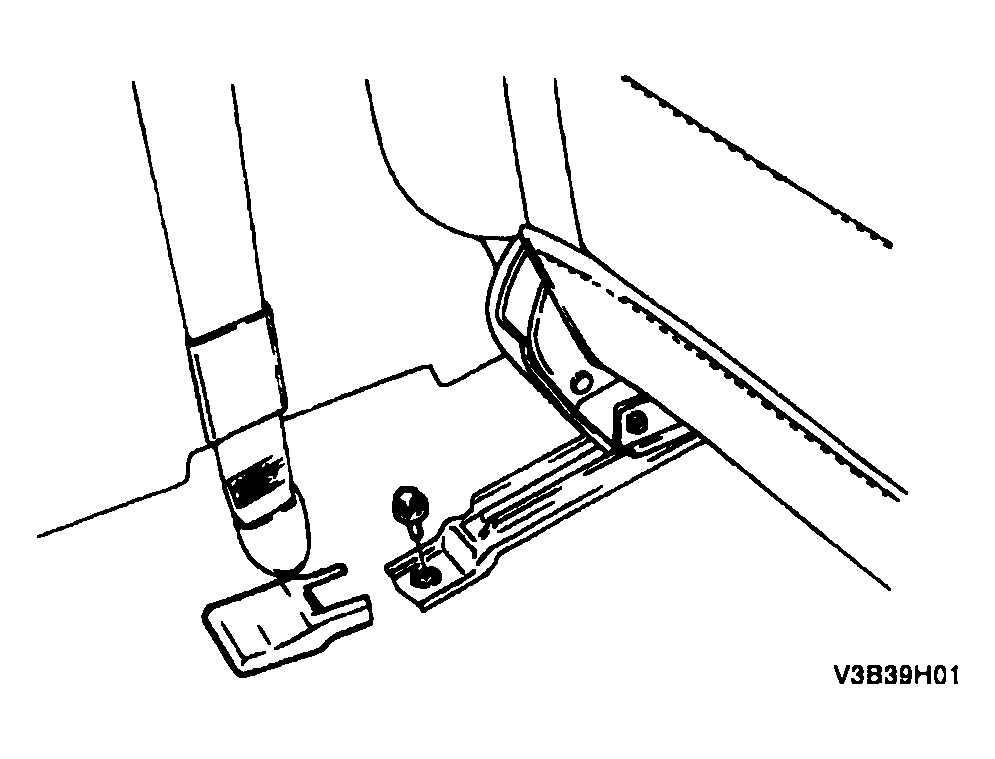

    Fig 2: Installing Plastic Caps Into Rear Portion Of Front Seat
    G04104559Courtesy of SUZUKI OF AMERICA CORP.
