Airbag System Wiring Diagram
WARNING:
This page is about a different car, the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, and 2007 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

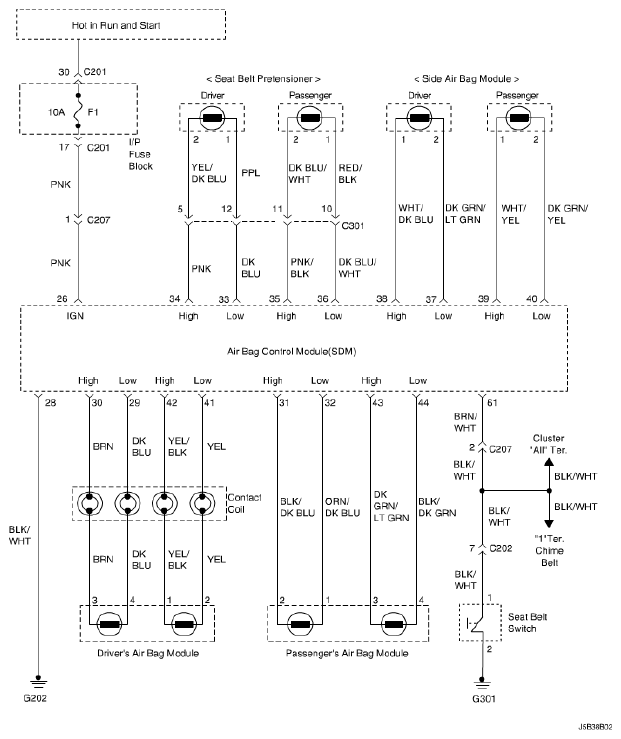

Fig 1: Air Bag System Wiring Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

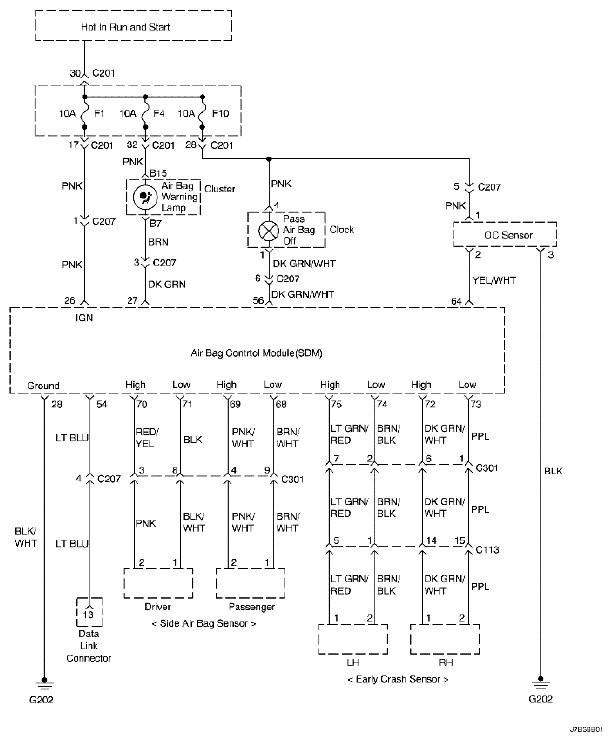

Fig 2: Air Bag System Wiring Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
