Side Airbag Sensor Removal and Installation: Installation

WARNING: This page is about a different car, the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, and 2007 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Installation should follow the removal procedure in the reverse order.

Tightening torque of the side airbag sensor mounting bolts is 10 N.m (89 lb-in).

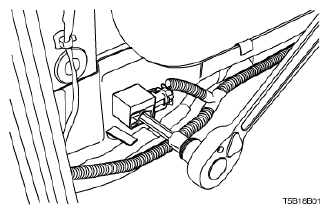

Fig 1: Tightening Side Airbag Sensor Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
