Passenger Air Bag (Inflator) Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disable air bag system. Refer to DISABLING AIR BAG SYSTEM:ADVANCED AIR BAG .
Disconnect passenger air bag (inflator) module connector (1) as shown in the figure.
1. Unlock lock button (2).
2. With lock button unlocked, disconnect connector.

  Fig 1: Disconnecting Passenger Air Bag (Inflator) Module Connector
  Courtesy of SUZUKI OF AMERICA CORP.

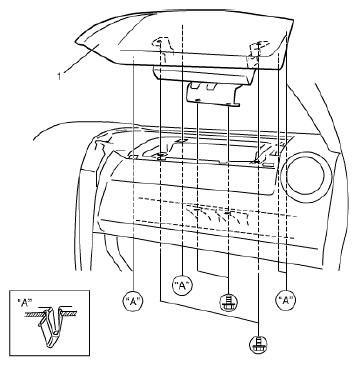

Remove passenger air bag (inflator) module (1) from instrument panel as shown.

Fig 2: Identifying Passenger Air Bag (Inflator) Module
Courtesy of SUZUKI OF AMERICA CORP.

WARNING:

When carrying a live air bag (inflator) module, make sure the bag opening is pointed away from you.
Never carry air bag (inflator) module by wires or connector on the side of the module. In case of an accidental deployment, the bag will then deploy with minimal chance of injury.
As the live passenger air bag (inflator) module must be kept with its bag (trim cover) facing up while being stored or left standing. This is necessary so that a free space is provided to allow the air bag to expand in the unlikely event of accidental deployment.
Observe PRECAUTIONS ON HANDLING AND STORAGE OF AIR BAG SYSTEM COMPONENTS:ADVANCED AIR BAG for handling and storing it.
Otherwise, personal injury may result.
