Washer Tank And Washer Pump Removal And Installation: Removal

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove front bumper referring to FRONT BUMPER COMPONENTS .
Remove right side headlight housing from vehicle body referring to HEADLIGHT HOUSING REMOVAL AND INSTALLATION .
Remove grommet (1) and upper part (2) of washer tank.

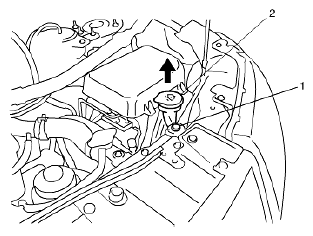

Fig 1: Removing Grommet & Upper Part Of Washer Tank
Courtesy of SUZUKI OF AMERICA CORP.
Remove washer tank attaching bolts (4).
Disconnect washer pump lead wire couplers and hoses.
Remove washer tank (1).
Remove windshield washer pump (2) and rear washer pump (3) (if equipped) from washer tank (1).

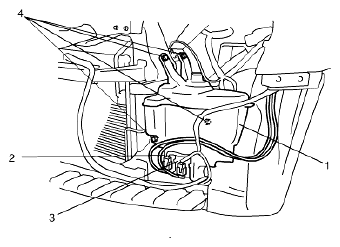

Fig 2: Identifying Windshield Washer Pump & Rear Washer Pump
