Muffler - Rear Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nuts and the gasket from the rear muffler pipe flange-to-front muffler pipe flange.

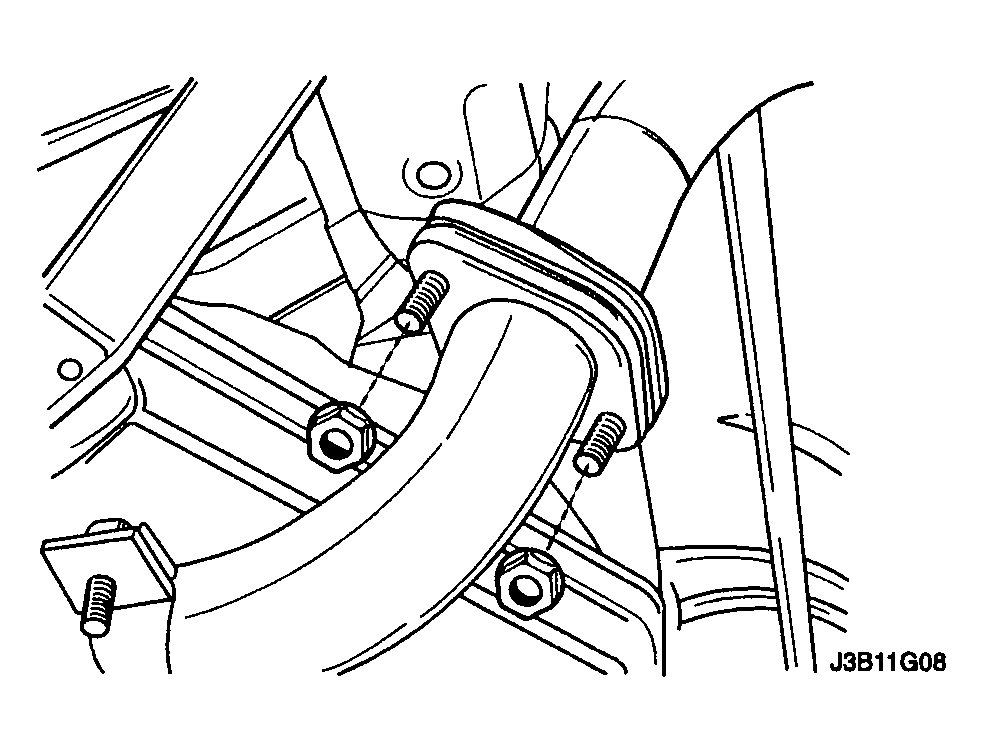

Fig 1: Removing Nuts And Gasket From Rear Muffler Pipe Flange-To-Front Muffler Pipe Flange
Courtesy of SUZUKI OF AMERICA CORP.
Detach the rear muffler assembly from the rubber hangers on the tail pipe end.
Remove the rear muffler assembly.
Check the rear muffler and the pipe for holes, damage, open seams, and other deterioration which could permit exhaust fumes to seep into the passenger compartment or the trunk.

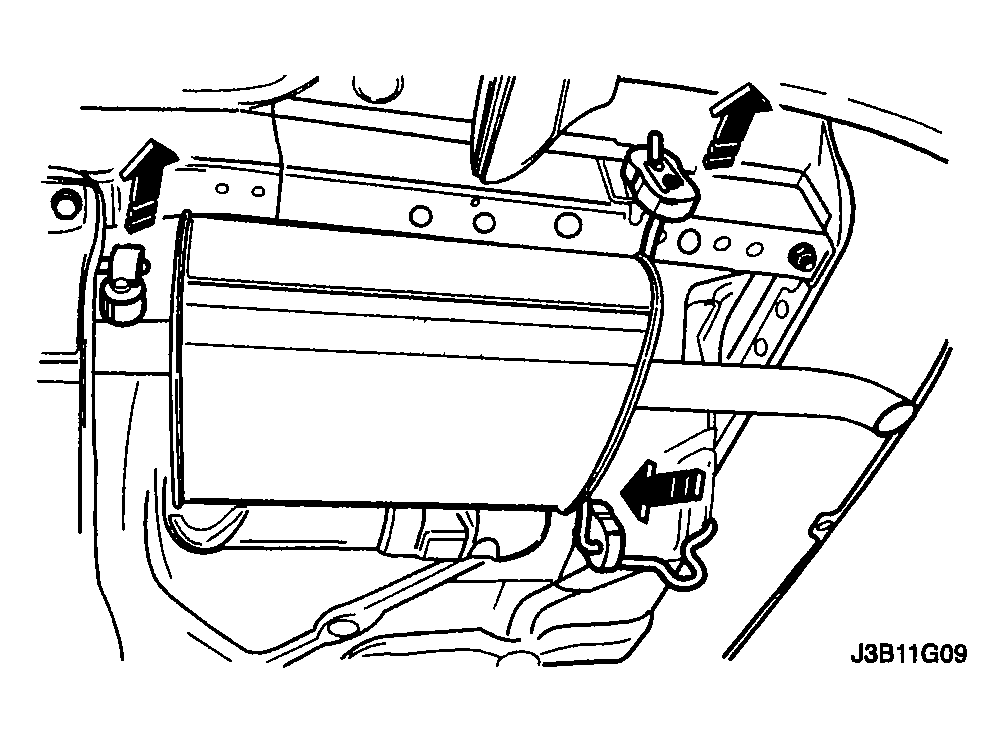

Fig 2: Removing Rear Muffler Assembly
Courtesy of SUZUKI OF AMERICA CORP.
