Muffler - Rear Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Secure the rear muffler assembly to the rubber hangers on the tail pipe end.

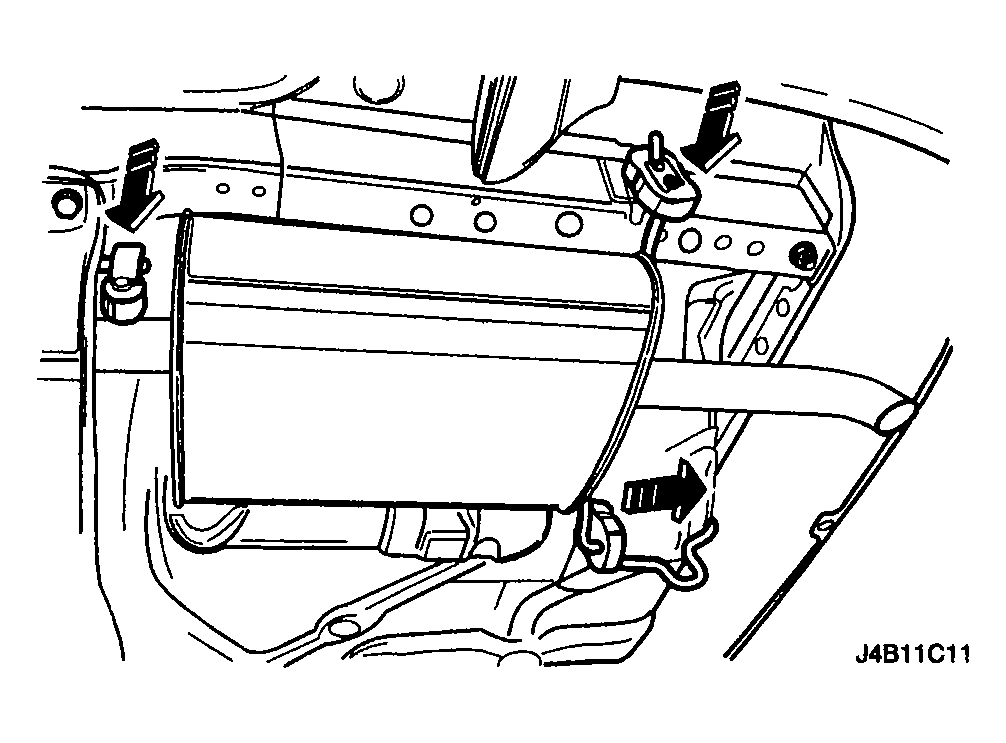

Fig 1: Securing Rear Muffler Assembly To Rubber Hangers On Tail Pipe End
Courtesy of SUZUKI OF AMERICA CORP.
Secure the nuts and the gasket from the rear muffler pipe flange-to-front muffler pipe flange.
Tighten

Tighten the front muffler-to-rear muffler nuts to 30 N.m (22 lb-ft).

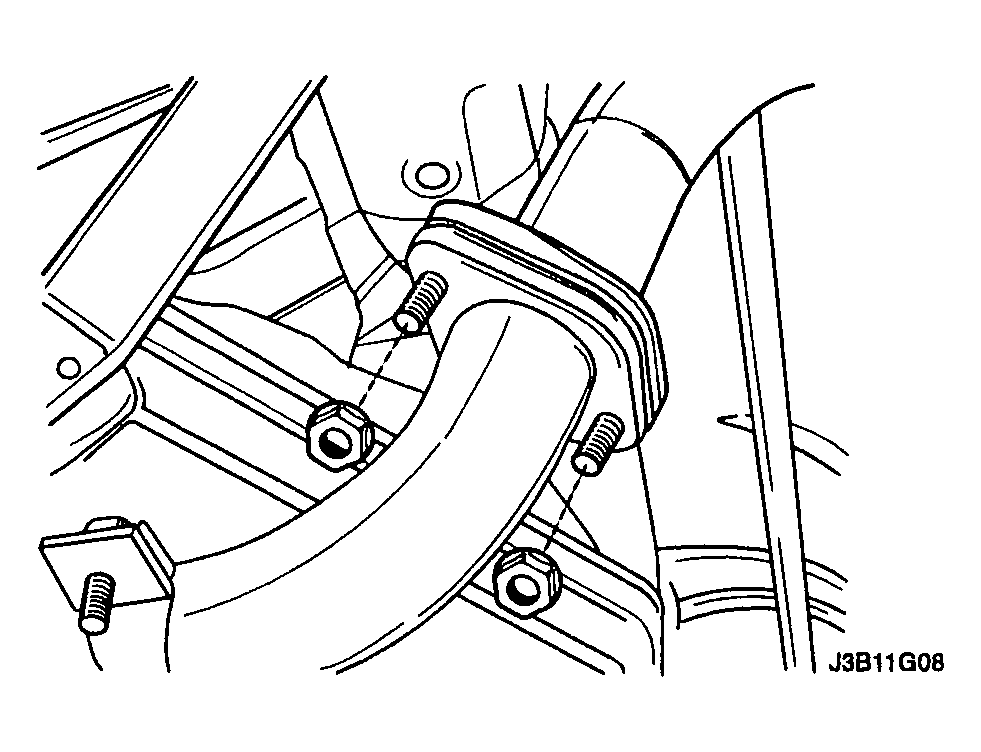

Fig 2: Tightening Front Muffler-To-Rear Muffler Nuts
Courtesy of SUZUKI OF AMERICA CORP.
