Muffler - Front Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nuts and the gasket from the front muffler pipe to the exhaust front pipe flange.
Disconnect the front muffler from the rubber hanger.

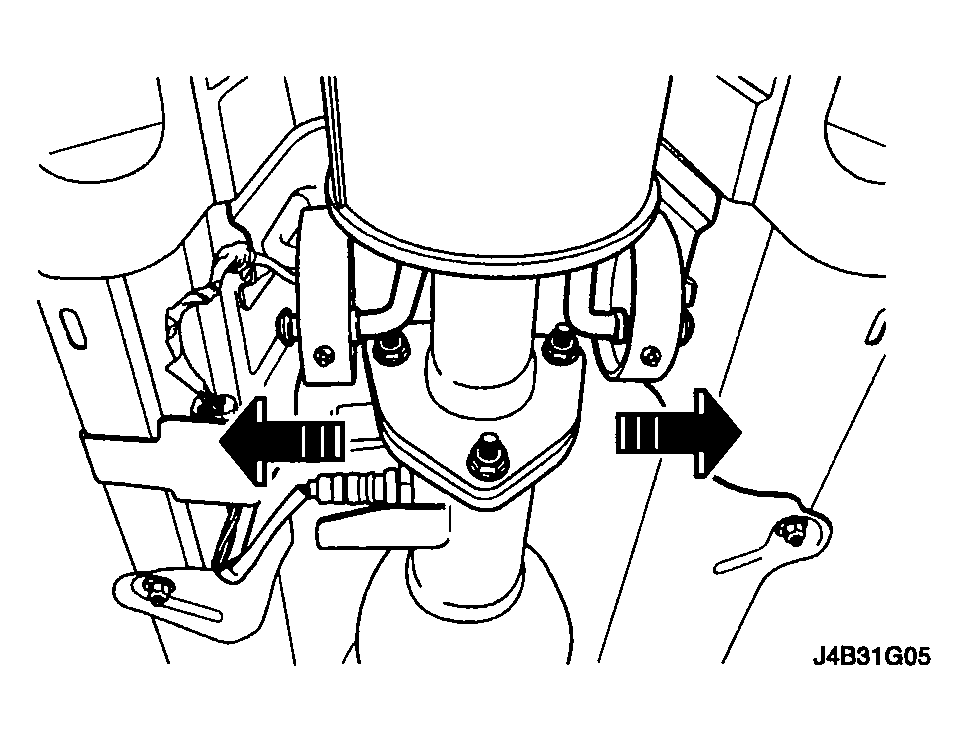

Fig 1: Disconnecting Front Muffler From Rubber Hanger
Courtesy of SUZUKI OF AMERICA CORP.
Remove the nuts and the gasket from the rear muffler pipe flange.
Remove the front muffler.
Check the exhaust pipe and the front muffler for holes, damage, open seams, or other deterioration which could permit exhaust fumes to seep into the passenger compartment or the trunk.

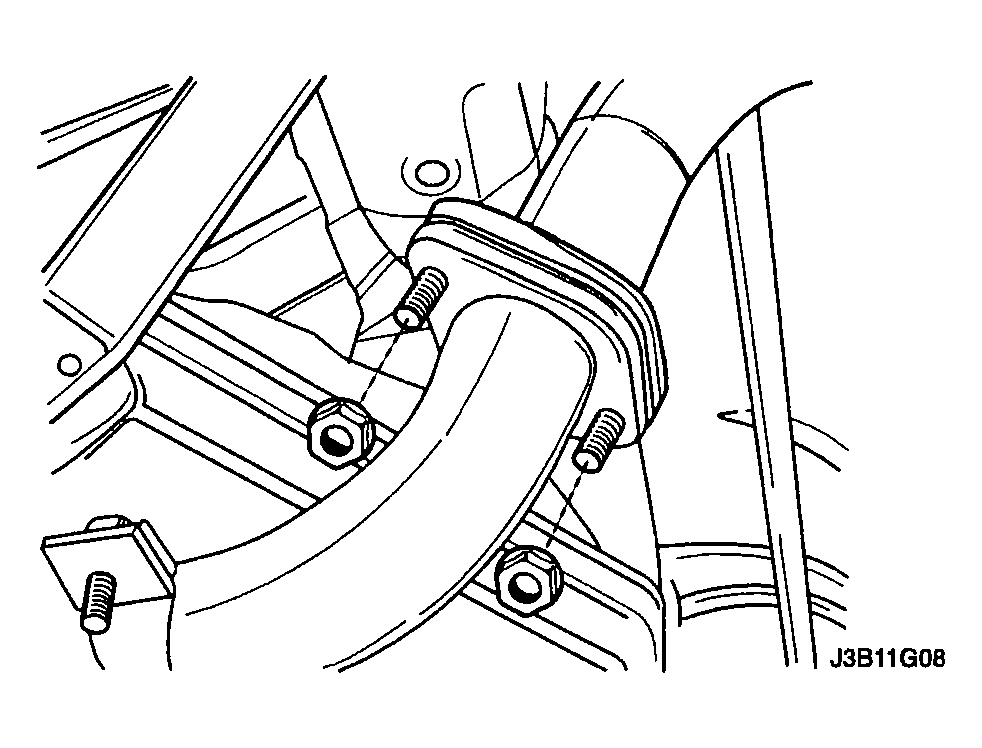

Fig 2: Removing Nuts And Gasket From Rear Muffler Pipe Flange
Courtesy of SUZUKI OF AMERICA CORP.
