Muffler - Front Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the front muffler to the rubber hanger.
- Attach the front muffler and the gasket to the rear muffler using the nuts. Secure the front muffler to the rubber hanger.
Tighten
Tighten the front muffler-to-rear muffler nuts to 30 N.m (22 lb-ft).

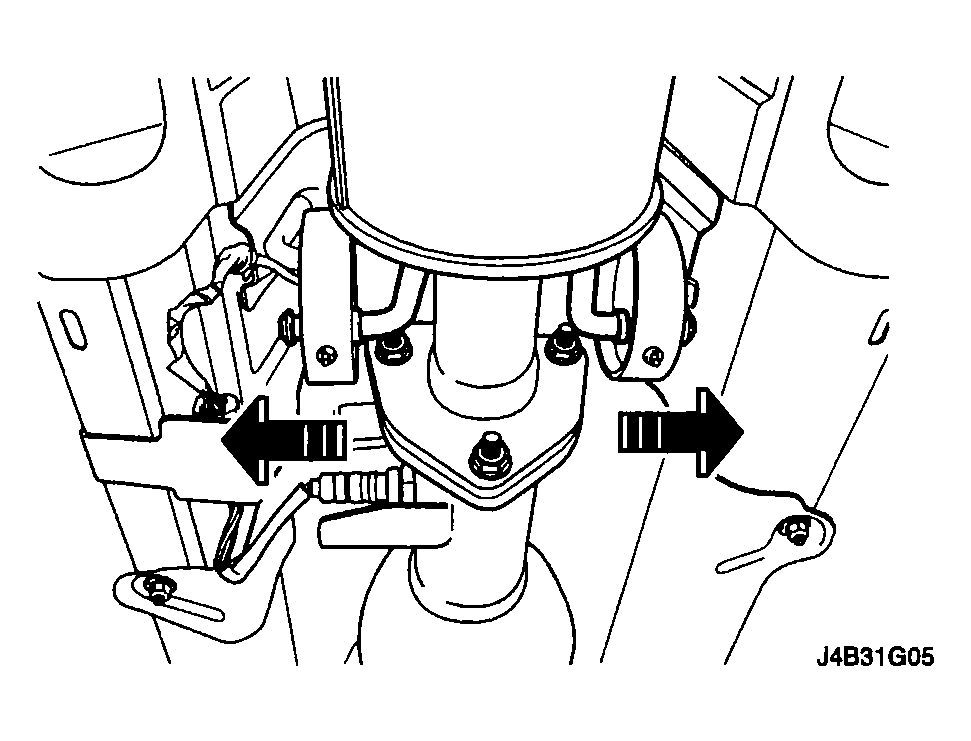

- Loosely secure the front muffler assembly to the connecting pipe flange.
- Secure the front muffler assembly to the connecting pipe flange with the nuts.
Tighten
Tighten the front muffler-to-exhaust front pipe nuts to 30 N.m (22 lb-ft).
