Exhaust Front Pipe Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crossmember lower bracket with the bolts.

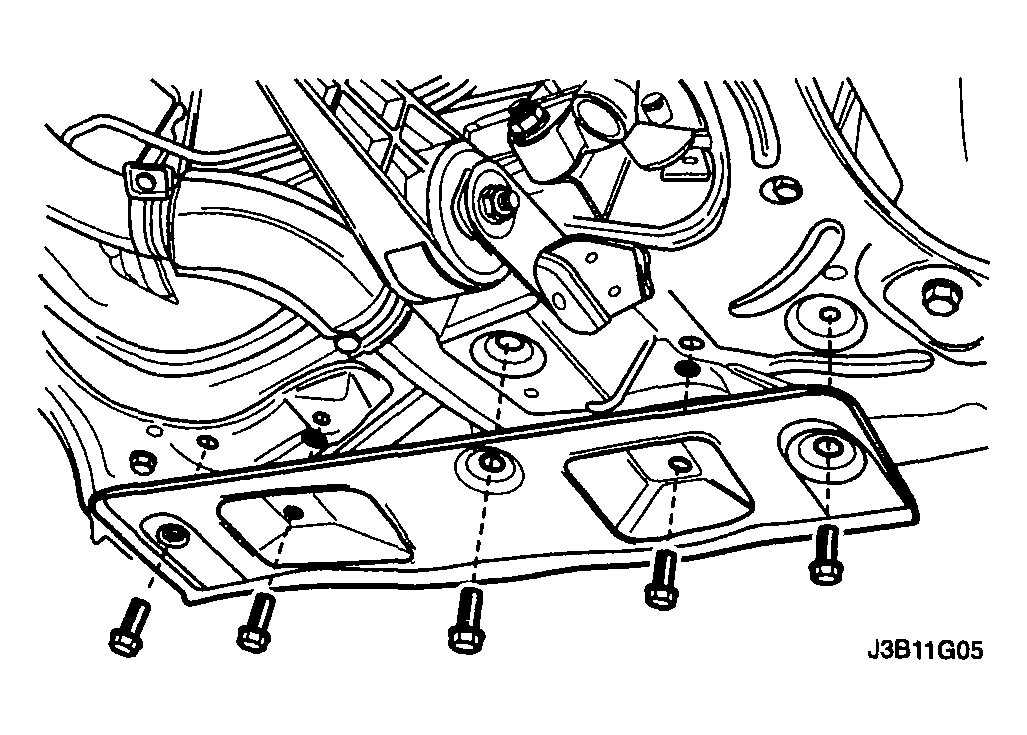

Fig 1: Removing Crossmember Lower Bracket With Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the exhaust front pipe mounting bracket bolt.
Remove the nuts from the exhaust front pipe-to-catalytic converter flange.

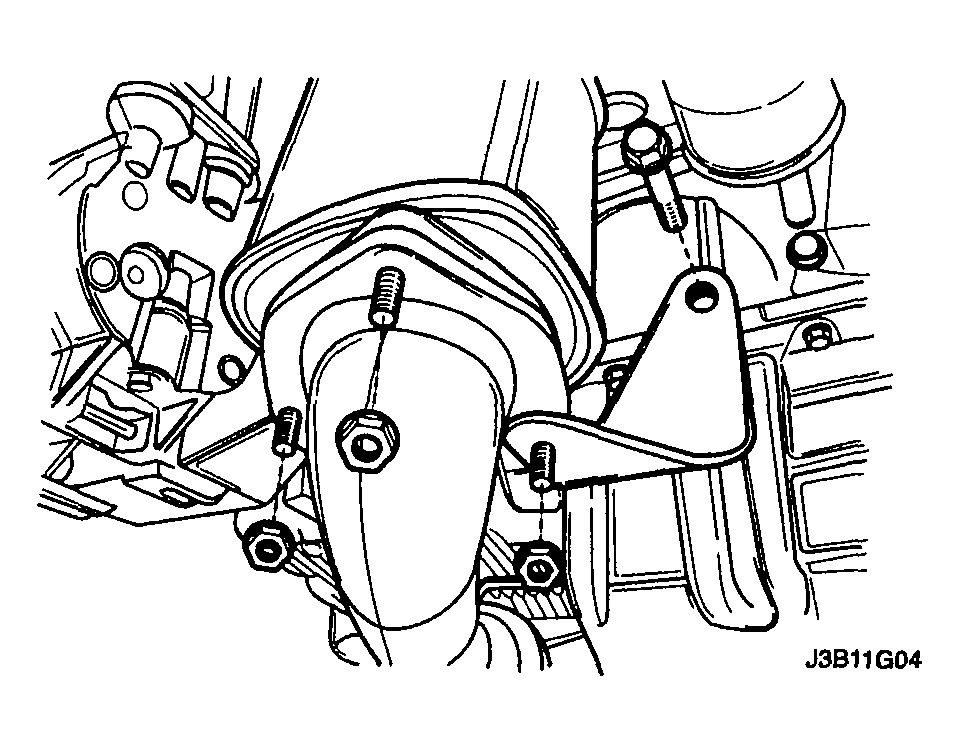

Fig 2: Removing Exhaust Front Pipe Mounting Bracket Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the oxygen sensor connector.
Remove the nuts from the exhaust front pipe-to-exhaust front muffler.
Remove the exhaust front pipe and the gasket.
Clean the sealing surfaces on the exhaust front muffler pipe flange and the exhaust front pipe.
Check the exhaust front pipe for holes, damage, open seams or other deterioration which could permit exhaust fumes to seep into the passenger compartment.

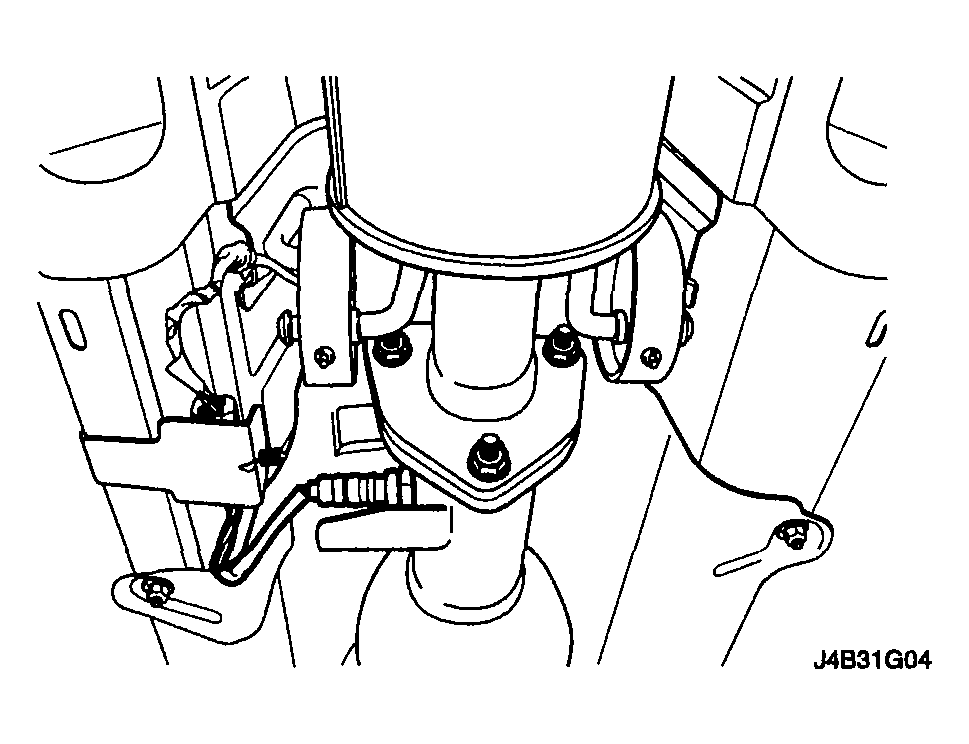

Fig 3: Removing Nuts From Exhaust Front Pipe-To-Exhaust Front Muffler
Courtesy of SUZUKI OF AMERICA CORP.
