Weatherstrip Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip onto the gutter flange.
  2. Inspect the weatherstrip. Make sure that the clinch is completely seated onto the flange.
  3. Using a water hose without a nozzle, test the rear deck lid to make sure that no leaks are present.
    • If there are no leaks present, no further repair is required.
    • If leaks are present, continue with the remainder of the installation procedure.

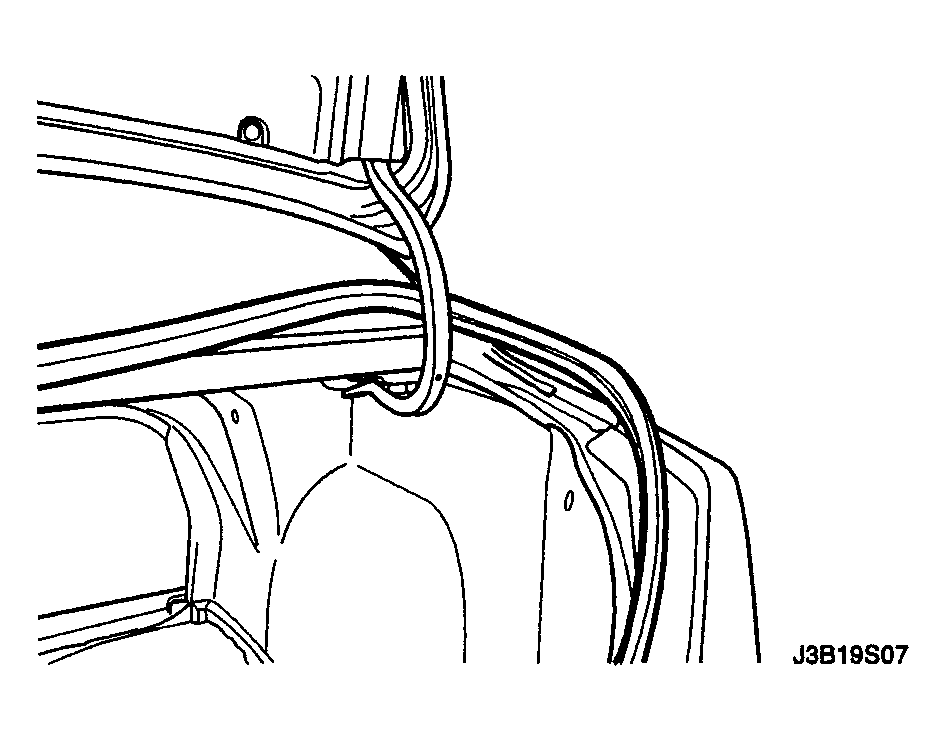

      Fig 1: Installing Weatherstrip Onto Gutter Flange
      G04104738Courtesy of SUZUKI OF AMERICA CORP.
