Front Wheel Well Splash Shield Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

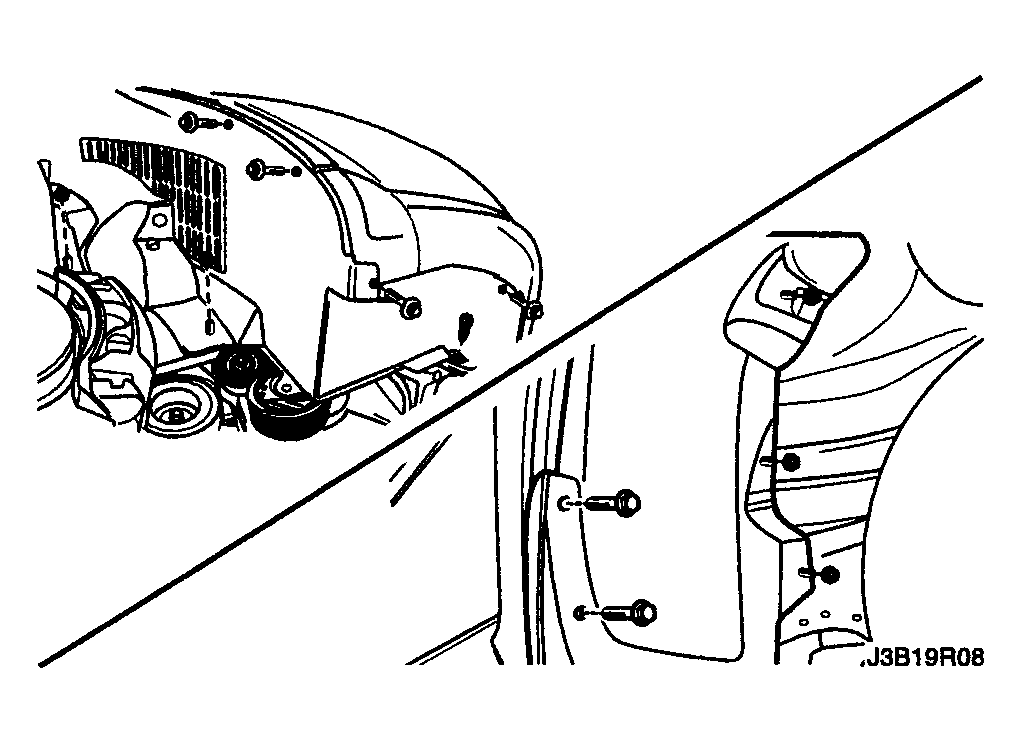

- Install the screws and the front wheel well splash shield.
Tighten
Tighten the front wheel well splash shield screws to 2 N.m (18 lb-in).
- Install the front mud guard. Refer to "MUD GUARDS REMOVAL AND INSTALLATION :".
- Install the front wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
- Lower the vehicle.
