Fender Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel well splash shield. Refer to "FRONT WHEEL WELL SPLASH SHIELD REMOVAL AND INSTALLATION :".
Reposition the front headlamp.
Remove the bolts securing the front fascia to the fender.

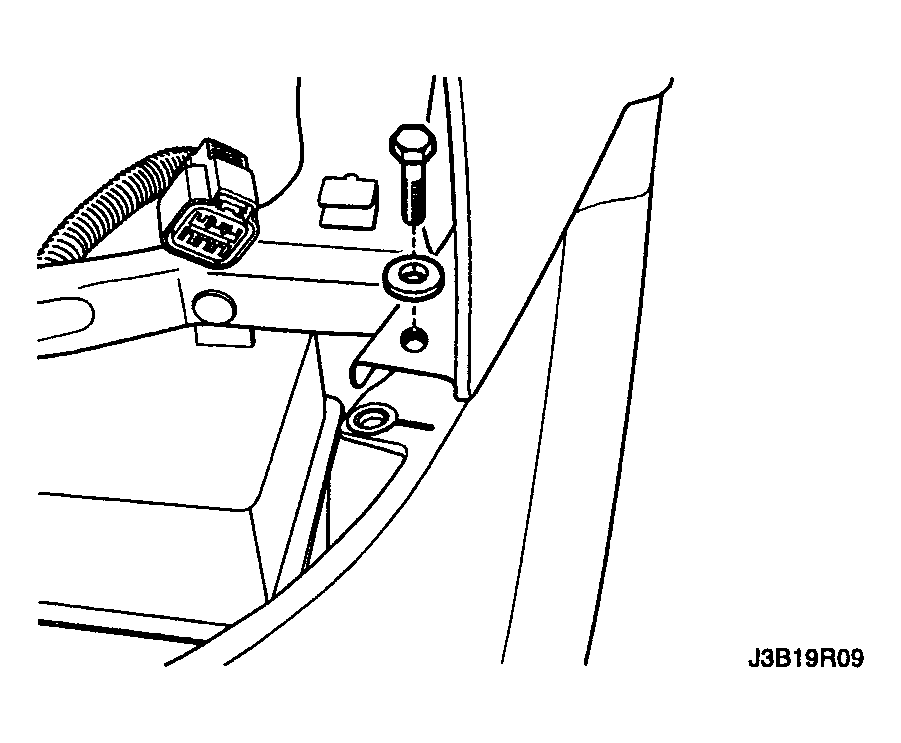

Fig 1: Removing Bolts Securing Front Fascia To Fender
Courtesy of SUZUKI OF AMERICA CORP.
Reposition the front fascia.
Remove the fender bolts behind the front fascia.
Remove the bolts at the base of the fender.

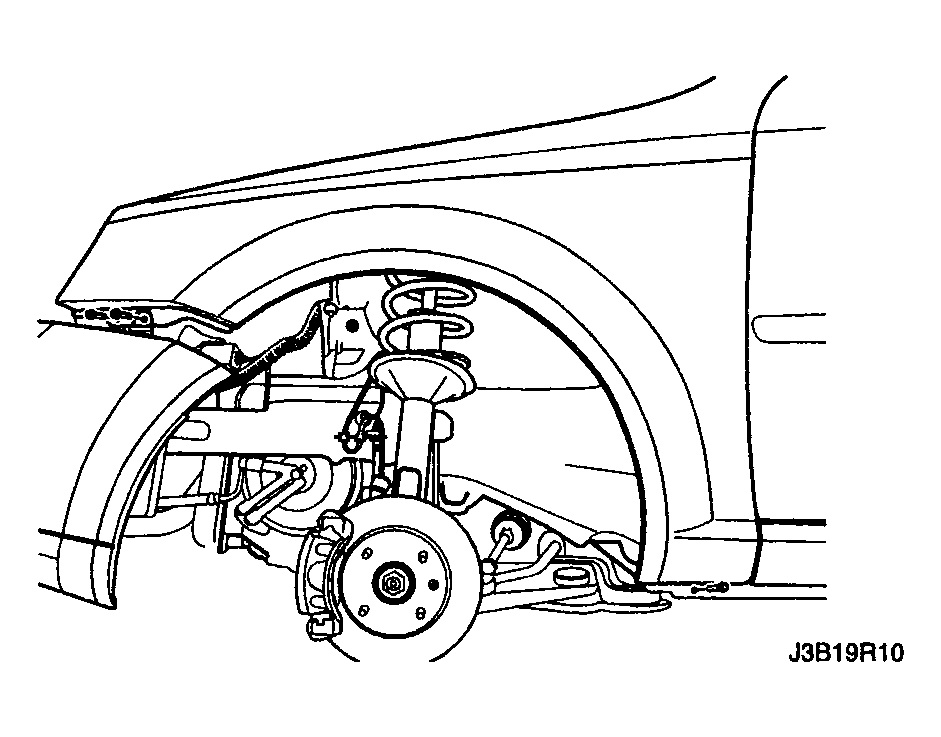

Fig 2: Removing Bolts On Base Of Fender
Courtesy of SUZUKI OF AMERICA CORP.
Open the front door and remove the bolt at the base of the A-pillar.

Fig 3: Removing Bolton Base Of A-Pillar
Courtesy of SUZUKI OF AMERICA CORP.
Reposition the cowl vent grille weatherstrip.
Remove the upper fender bolts and the fender.

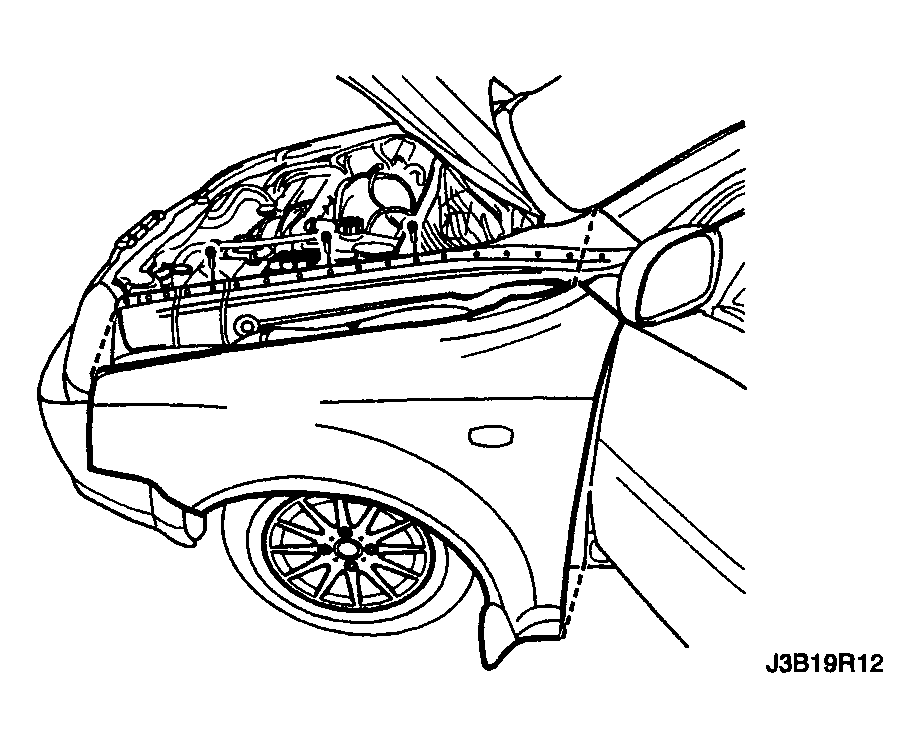

Fig 4: Removing Upper Fender Bolts And Fender
Courtesy of SUZUKI OF AMERICA CORP.
