Door Hold-Open Link Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the door hold-open link to the door and the body with the bolts.
Tighten

Tighten the door hold-open link-to-body bolt to 25 N. m (18 lb-ft).

Tighten the door hold-open link-to-door bolts to 9 N.m (80 lb-in).
Install the door seal trim. Refer to "DOOR SEAL TRIM REMOVAL AND INSTALLATION :".

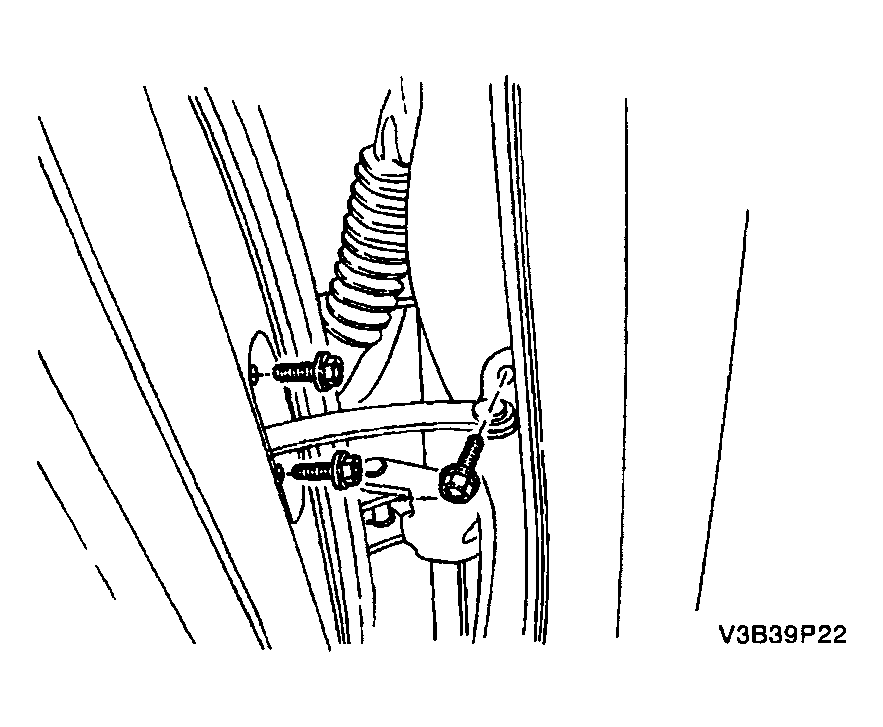

Fig 1: Tightening Door Hold-Open Link-To-Door Bolts
Courtesy of SUZUKI OF AMERICA CORP.
