Door Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector and the body-to-door rubber grommet.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
With the aid of another technician, lightly secure the front door with the door hinge bolts. (Front door shown, rear door similar.)
Adjust the door for proper fit.
Tighten

Tighten the door hinge-to-body bolts to 20 N.m (15 lb-ft).

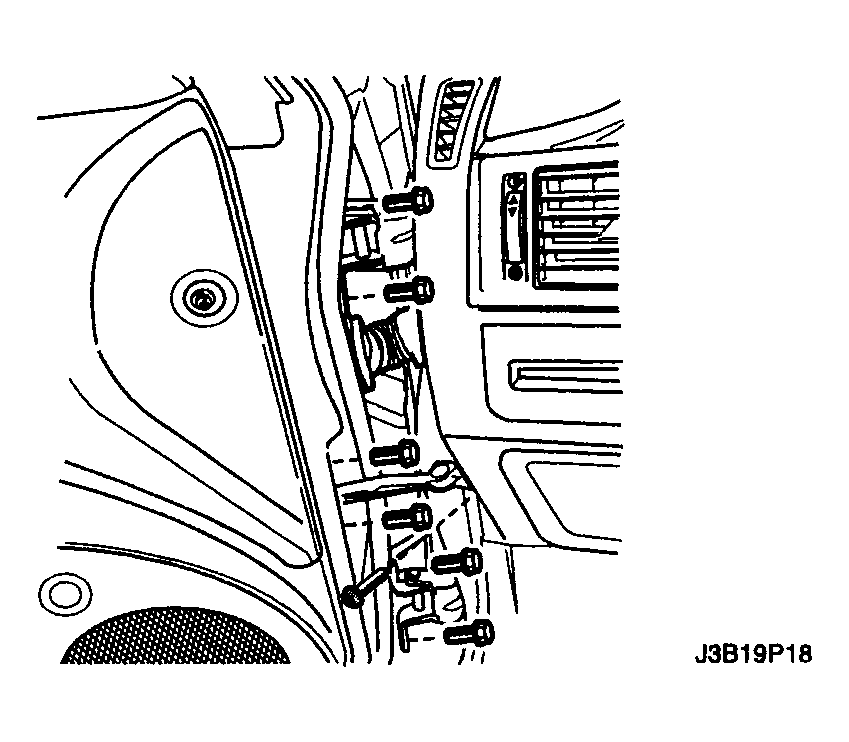

Fig 1: Tightening Door Hinge-To-Body Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the door hold-open link to the body with the bolts.
Tighten

Tighten the door hold-open link-to-body bolt to 25 N.m (18 lb-ft).
Connect the negative battery cable.
Perform the waterleak test. Refer to "WATERLEAK DIAGNOSIS :".
Check for windnoise. Refer to "WINDNOISE DIAGNOSIS :".

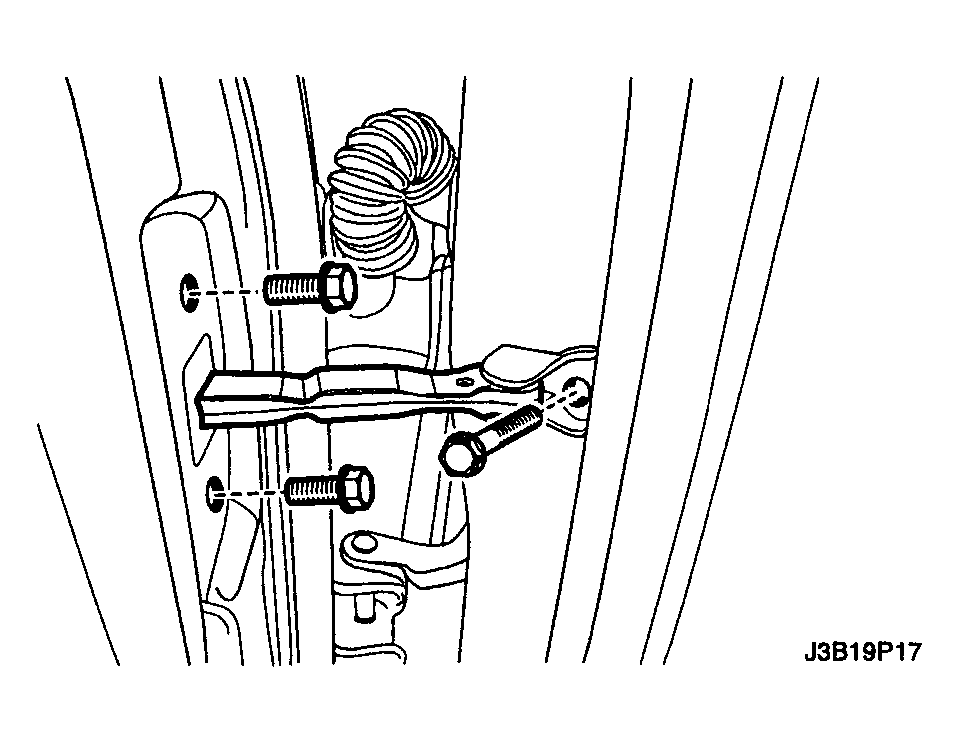

Fig 2: Tightening Door Hold-Open Link-To-Body Bolt
Courtesy of SUZUKI OF AMERICA CORP.
