Front Door (Driver And Passenger Side) Rear End Door Request Switch Inspection
WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Remove door trim from door panel.
For front door trim, refer to FRONT DOOR ASSEMBLY REMOVAL AND INSTALLATION .
For rear end door trim, refer to Step 1) of REAR END DOOR LOCK ASSEMBLY REMOVAL AND INSTALLATION .

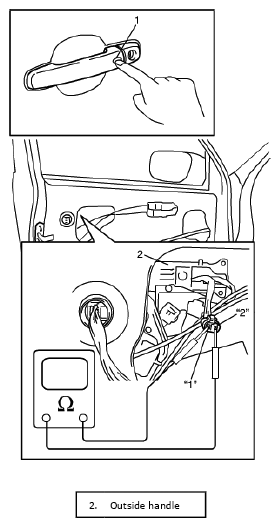

- Check for continuity between terminals "1" and "2" at each switch position as shown below. If check result is not as specified, replace.
Request switch (1) specification
ON position (request switch pushed): Continuity
OFF position (request switch released): No continuity
