WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

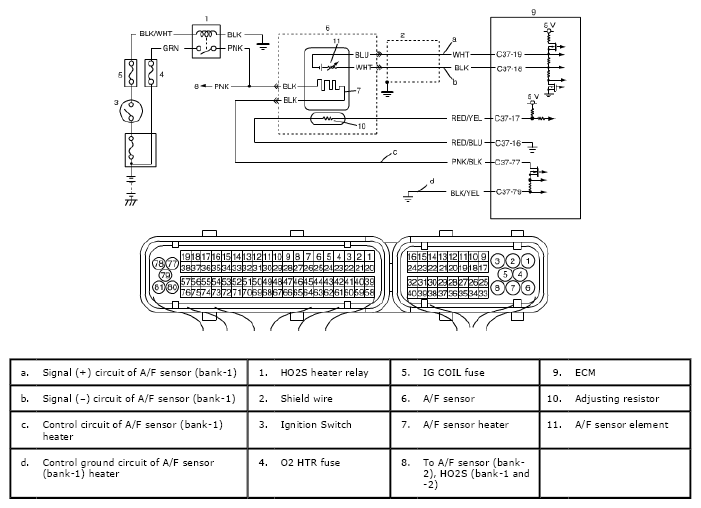

Fig 1: O2 Sensor Positive Current Control Circuit/Open (Sensor-1, Bank-1) - Wiring Diagram
