DTC P0154: O2 Sensor Circuit No Activity (Sensor-1, Bank-2): Wiring Diagram

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

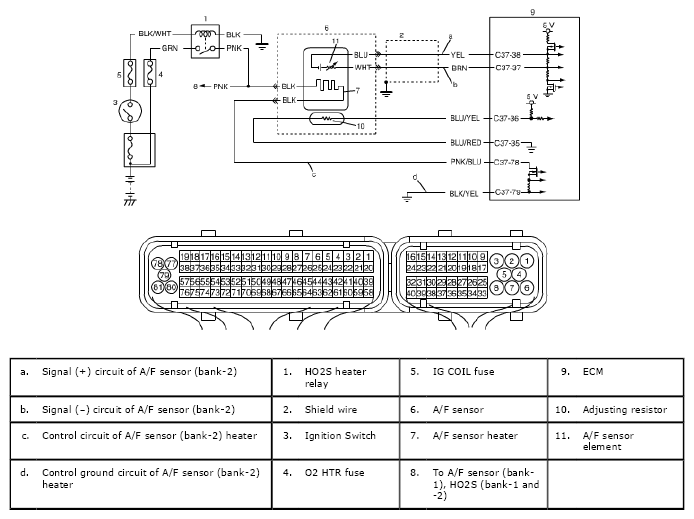

Fig 1: O2 Sensor Circuit No Activity (Sensor-1, Bank-2) - Wiring Diagram
G04807084Courtesy of SUZUKI OF AMERICA CORP.
