DTC P0111: Intake Air Temperature Sensor Circuit Performance: Wiring Diagram

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

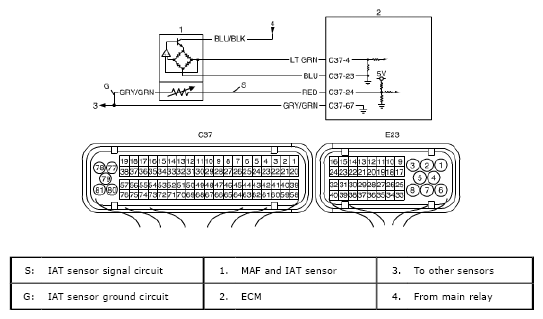

Fig 1: Intake Air Temperature Sensor Circuit Performance - Wiring Diagram
G04807076Courtesy of SUZUKI OF AMERICA CORP.
