A/C Evaporator Removal And Installation: Removal

WARNING: This page is about a different car, the 2007 Suzuki Grand Vitara and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove HVAC unit referring to HVAC UNIT REMOVAL AND INSTALLATION .
  2. Remove evaporator (1) from HVAC unit by disassembling HVAC unit.

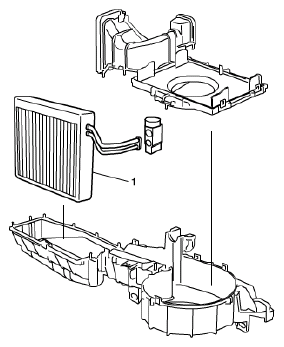

    Fig 1: Identifying Evaporator
    G04809252Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove evaporator temperature sensor from evaporator.
