Rear Timing Belt Cover Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear timing belt cover.
Install the rear timing belt cover bolts.
Tighten

Tighten the rear timing belt cover bolts to 7 N.m (62 lb-in).
Install the engine mount and retaining bolts.
Tighten

Tighten the engine mount retaining bolts to 45 N.m (33 lb-ft).

Fig 1: Installing Rear Timing Belt Cover Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the timing belt idler pulleys.
Install the timing belt idler pulley bolt and nut.
Tighten

Tighten the timing belt idler pulley bolt to 25 N.m (18 lb-ft).

Tighten the timing belt idler pulley nut to 25 N.m (18 lb-ft).
Install the crankshaft timing belt drive gear and bolt.
Tighten

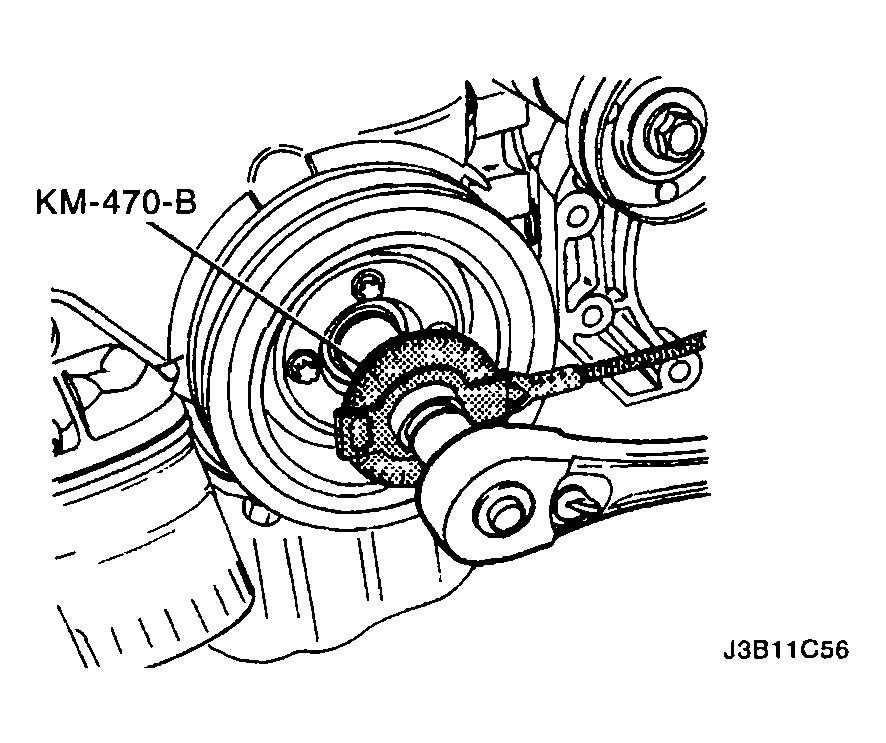

Tighten the crankshaft gear bolt to 145 N.m (107 lb-ft) plus 30 degrees and plus 15 degrees using the angular torque gauge KM-470-B.

Fig 2: Installing Crankshaft Timing Belt Drive Gear And Bolt
Courtesy of SUZUKI OF AMERICA CORP.

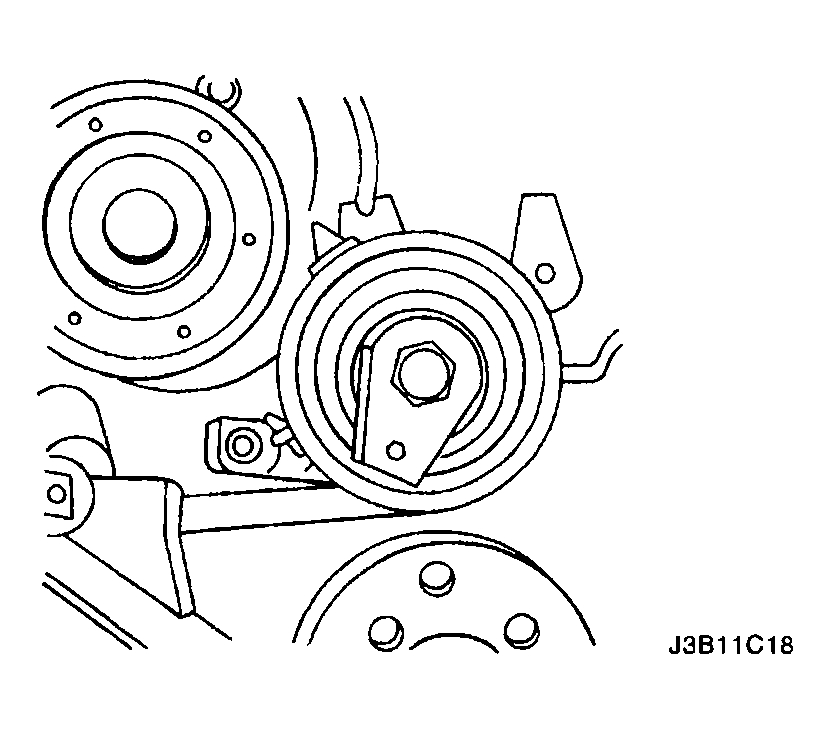

Install the timing belt automatic tensioner and bolt.
Install the camshaft gears. Refer to "CAMSHAFT GEARS REMOVAL AND INSTALLATION :".
Install the timing belt and timing belt cover. Refer to "TIMING BELT REMOVAL AND INSTALLATION :".
Connect the negative battery cable.

Fig 3: Installing Timing Belt Automatic Tensioner And Bolt
Courtesy of SUZUKI OF AMERICA CORP.
