Head Lining Removal And Installation: Installation

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure noting the following.

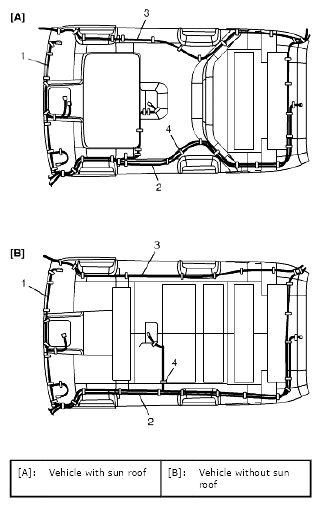

Set roof harness (1), rear washer hose (2) and antenna feeder (3) to head lining with adhesive tape (4) as shown.

Fig 1: Identifying Vehicle With Sun Roof & Vehicle Without Sun Roof
Courtesy of SUZUKI OF AMERICA CORP.
For equipped with sun roof, hook on bracket (1) of roof lining to sun roof housing (2).

Fig 2: Identifying Hook Bracket & Roof Lining To Sun Roof Housing
Courtesy of SUZUKI OF AMERICA CORP.
For equipped with sun roof, adhere fasteners (1) on roof lining to fasteners of sun roof frame securely.

Fig 3: Identifying Sun Roof Fasteners
Courtesy of SUZUKI OF AMERICA CORP.
For tightening torque of seat belt anchor bolt, refer to FRONT SEAT BELT COMPONENTS and REAR SEAT BELT COMPONENTS .
