Rocker Panel Molding Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rocker panel molding with the screws.
  2. Install the front mud guards. Refer to Mud Guards Installation  .

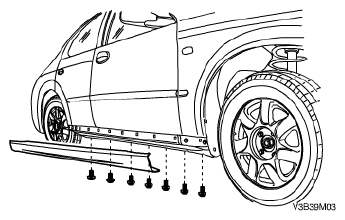

    Fig 1: Identifying Rocker Panel Molding With Screws
    G04720697Courtesy of SUZUKI OF AMERICA CORP.
