Weatherstrip Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip onto the gutter flange.
  2. Inspect the weatherstrip. Make sure that the clinch is completely seated onto the flange.
  3. Using a water hose without a nozzle, test the rear deck lid to make sure that no leaks are present.
    • If there are no leaks present, no further repair is required.
    • If leaks are present, continue with the remainder of the installation procedure.
  4. Remove the weatherstrip.
  5. Install the new weatherstrip onto the gutter flange.

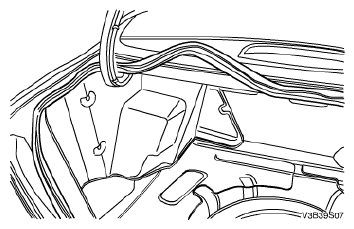

    Fig 1: Identifying Gutter Weatherstrip
    G04720654Courtesy of SUZUKI OF AMERICA CORP.
