Outside Channel Molding Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Press the outside channel molding onto the door.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
Install the outside channel molding screw.
Tighten:

Tighten the outside channel molding screw to 1.3 N.m (12 lb-in.).
Install the outside rearview mirror. Refer to OUTSIDE REARVIEW MIRRORS INSTALLATION .
Raise the window.

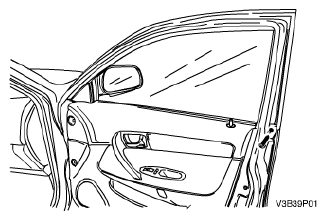

Fig 1: Identifying Outside Channel Molding & Screw
Courtesy of SUZUKI OF AMERICA CORP.
