Front Wheel Well Splash Shield Installation
WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

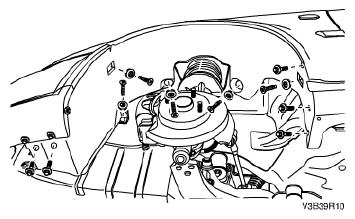

- Install the screws and the front wheel well splash shield.
Tighten:
Tighten the front wheel well splash shield screws to 2 N.m (18 lb-in.).
- Install the front mud guard. Refer to MUD GUARDS INSTALLATION .
- Install the front wheel. Refer to WHEEL INSTALLATION .
- Lower the vehicle.
