Fender Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Removal .
Reposition the front headlamp.
Remove the bolts securing the front fascia to the fender.

Fig 1: Identifying Front Fascia-To-Fender Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Reposition the front fascia.
Remove the fender bolts behind the front fascia.
Remove the rocker panel molding. Refer to ROCKER PANEL MOLDING REMOVAL .
Remove the bolts at the base of the fender.

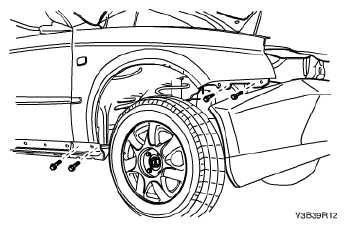

Fig 2: Identifying Fender Base & Front Fascia Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Open the front door and remove the bolt at the base of the A-pillar.

Fig 3: Identifying Bolt At Base Of A-Pillar
Courtesy of SUZUKI OF AMERICA CORP.
Reposition the cowl vent grille weatherstrip.
Remove the upper fender bolts and the fender.

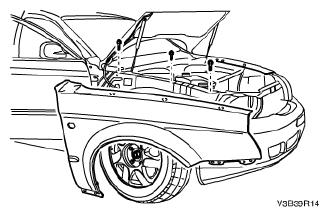

Fig 4: Identifying Upper Fender & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
