Door Weatherstrip Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the door weatherstrip.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

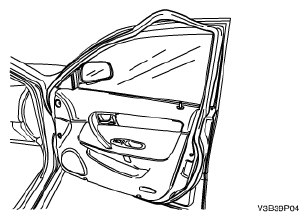

Fig 1: Identifying Door Weatherstrip
Courtesy of SUZUKI OF AMERICA CORP.
Install the door hold-open link to the body with the bolt.
Tighten:

Tighten the door hold-open link-to-body bolt to 25 N.m (18 lb-ft).

Fig 2: Identifying Door Hold-Open Link & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
