Clutch Coil Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Recover the refrigerant. Refer to "DISCHARGING, ADDING OIL, EVACUATING, AND CHARGING PROCEDURES FOR A/C SYSTEM :".
- Remove the compressor. Refer to "COMPRESSOR REMOVAL AND INSTALLATION :".
- Remove the clutch plate and hub assembly. Refer to "CLUTCH PLATE AND HUB ASSEMBLY DISASSEMBLY AND ASSEMBLY :".
- Remove the clutch rotor and bearing. Refer to "CLUTCH ROTOR AND BEARING DISASSEMBLY AND INSTALLATION :".
- Mark the clutch coil terminal location on the compressor housing.

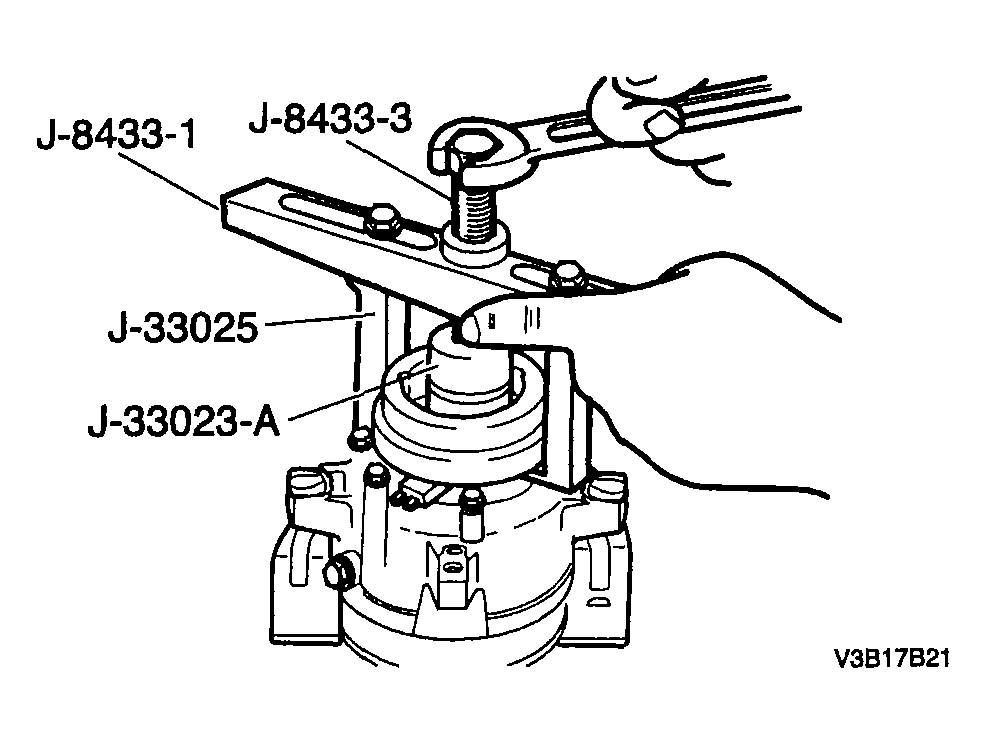

- Install the puller pilot J-33023-A on the compressor housing. Also install the puller cross bar J-8433-1 with the clutch coil puller legs J-33025.
- Tighten the forcing screw J-8433-3 against the puller pilot J-33023-A to remove the clutch coil.
