Clutch Coil Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Place the clutch coil installer adapter J-33024 over the internal opening of the clutch coil housing and align the clutch coil installer adapter J-33024 with the compressor housing.
- Place the clutch coil installer adapter J-33024 over the internal opening of the clutch coil housing and align the clutch coil installer adapter J-33024 with the compressor housing.

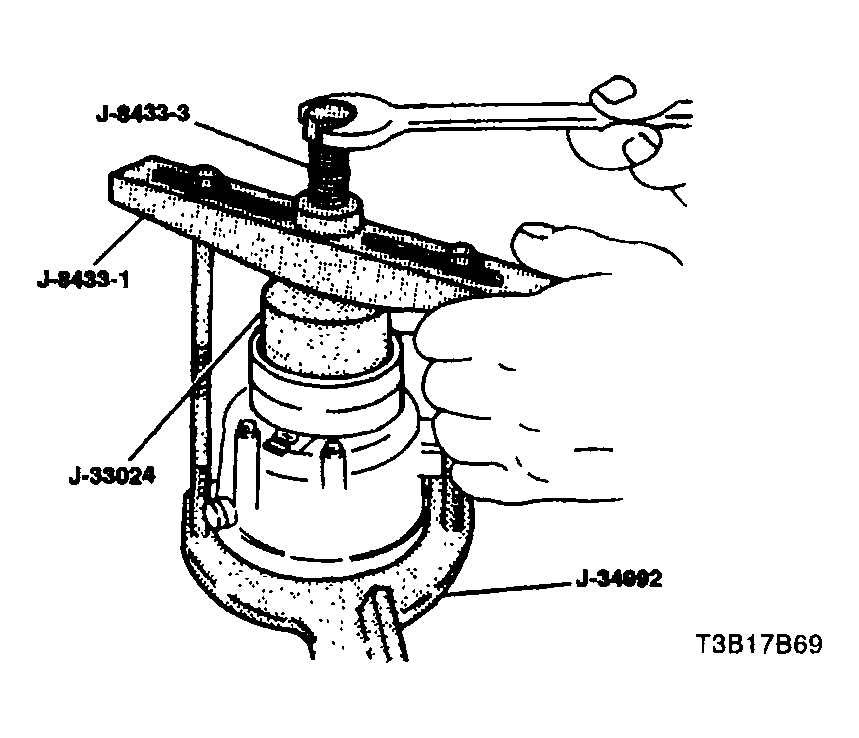

- Center the puller crossbar J-8433-1 in the countersunk center hole of the clutch coil installer adapter J-33024. Install the through-bolts of the compressor holding fixture J-34992 and the washers in the crossbar slots. Thread them into the holding fixture to the full thickness of the holding fixture.NOTE: Be sure the clutch coil and the installer stay "in-line" during installation.
- Turn the forcing screw J-8433-3, or use a suitable vise, to force the clutch coil onto the compressor housing.
- When the clutch coil is fully seated on the compressor housing, use a 3 mm (1/8 inch) diameter drift punch and stake the housing at three places, 120 degrees apart, to ensure that the clutch coil will remain in position. Stake point size should be only one-half the area of the punch tip and approximately 0.28 to 0.35 mm (0.010 to 0.015 inch) deep.
- Install the clutch rotor and bearing assembly. Refer to "CLUTCH ROTOR AND BEARING DISASSEMBLY AND INSTALLATION :".
- Install the clutch plate and hub assembly. Refer to "CLUTCH PLATE AND HUB ASSEMBLY DISASSEMBLY AND ASSEMBLY :".
- Install the compressor. Refer to "COMPRESSOR REMOVAL AND INSTALLATION :".
- Connect the negative battery cable.
- Evacuate and recharge the A/C system. Refer to "DISCHARGING, ADDING OIL, EVACUATING, AND CHARGING PROCEDURES FOR A/C SYSTEM :".
