A/C Pressure Transducer Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Recover the refrigerant. Refer to "DISCHARGING, ADDING OIL, EVACUATING, AND CHARGING PROCEDURES FOR A/C SYSTEM :".

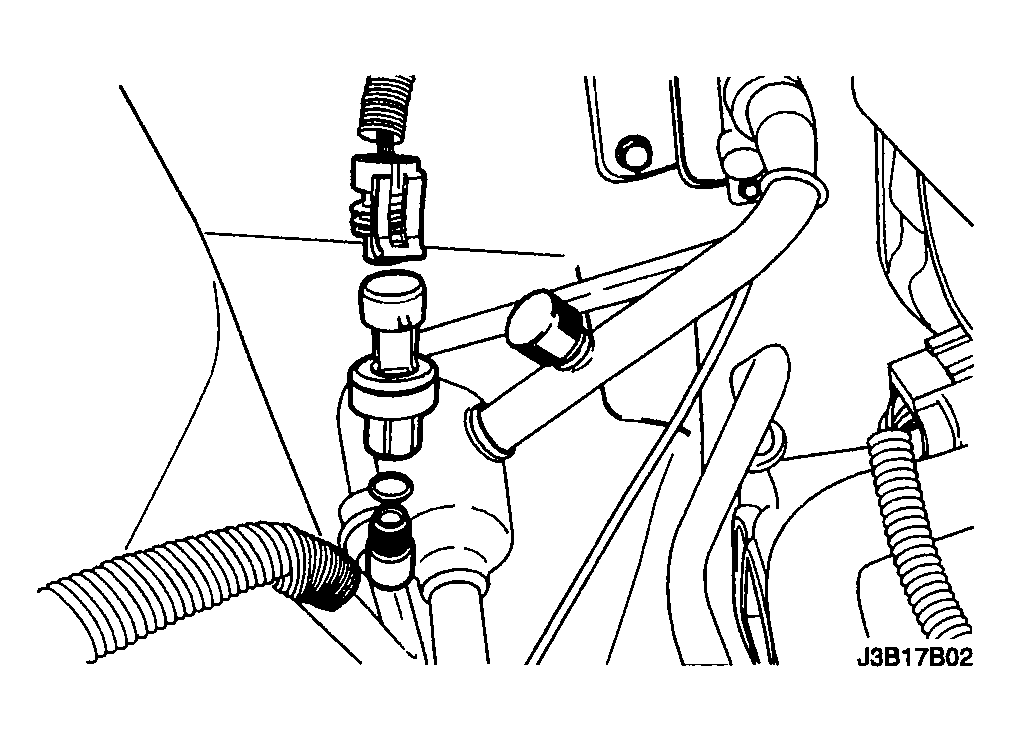

- Release the connector lock and pull the transducer wire connector out.
- Remove the transducer with a wrench.
- Discard the O-ring seal.
