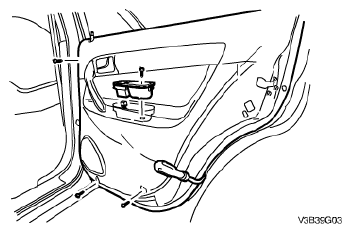

Rear Door Trim Panel Installation
WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
- Install the trim panel.
- Connect the power window control switch electrical connector, if equipped.
- Install the power window control switch.
- Install the door trim panel screws.
Tighten:
Tighten the door trim panel screws to 2.5 N.m (22 lb-in.).
- Install the inside door handle trim bezel.
- Raise the rear window.
