Luggage Compartment Wheelhouse Trim Panel Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheelhouse trim panel with the plastic clips.
  2. Install the luggage compartment rear panel cover. Refer to Luggage Compartment Rear Low Cover Installation .

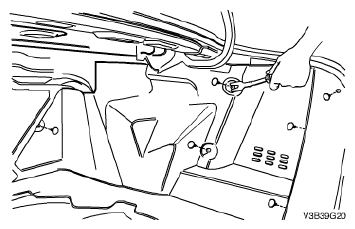

    Fig 1: Identifying Plastic Retaining Clips Of Luggage Compartment Rear Panel Cover
    G04720588Courtesy of SUZUKI OF AMERICA CORP.
