Instrument Cluster Indicator Lamps Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new bulb.
  2. Install the instrument cluster. Refer to Instrument Cluster Installation .
  3. Connect the negative battery cable.

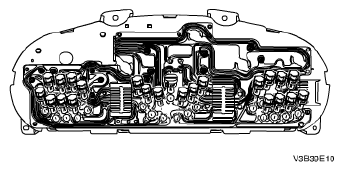

    Fig 1: Identifying Instrument Cluster Indicator Lamps
    G04720388Courtesy of SUZUKI OF AMERICA CORP.
