Fuel and Temperature Gauge Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel and the temperature gauge to the cluster assembly.

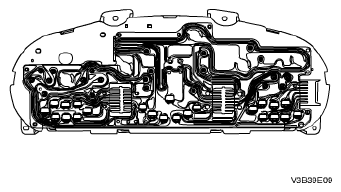

    Fig 1: Identifying Fuel & Temperature Gauge & Instrument Cluster
    G04720385Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the instrument cluster lens.
  3. Install the instrument cluster. Refer to Instrument Cluster Installation .
  4. Connect the negative battery cable.
    Fig 2: Identifying Instrument Cluster And Screws
    G04720372Courtesy of SUZUKI OF AMERICA CORP.
