Turn Signal and Hazard Lamps Circuit Diagram

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

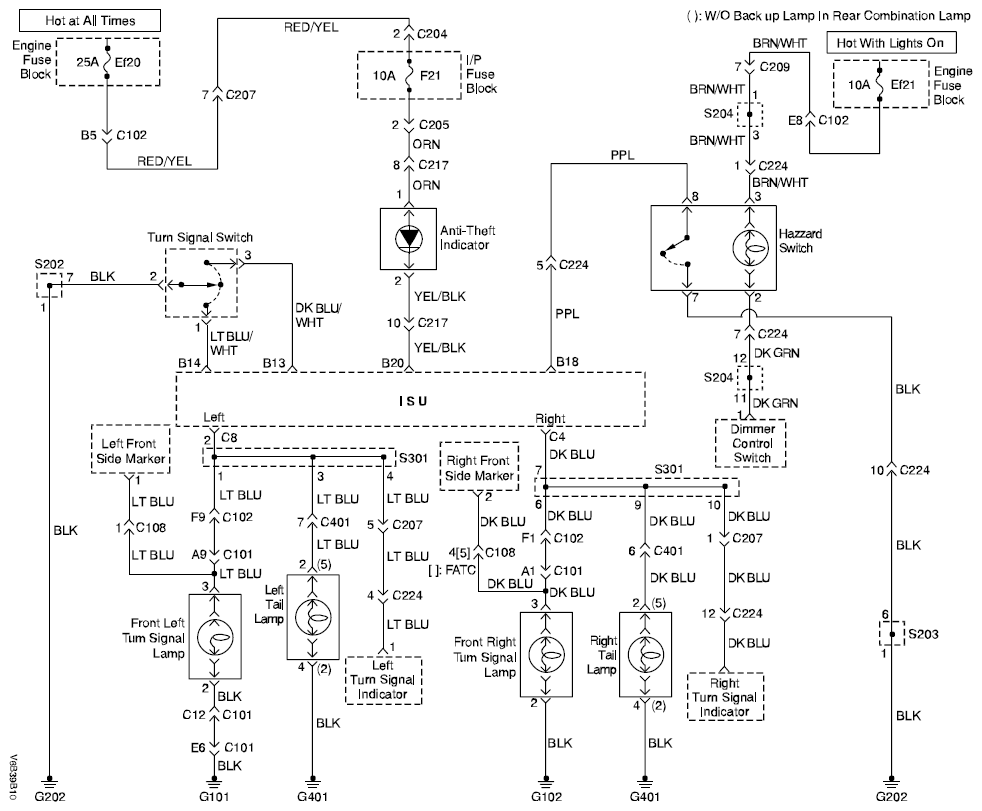

Fig 1: Turn Signal And Hazard Lamps Circuit Diagram
G04720299Courtesy of SUZUKI OF AMERICA CORP.
