A/C Blower and Motor Controls Circuit Diagram

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

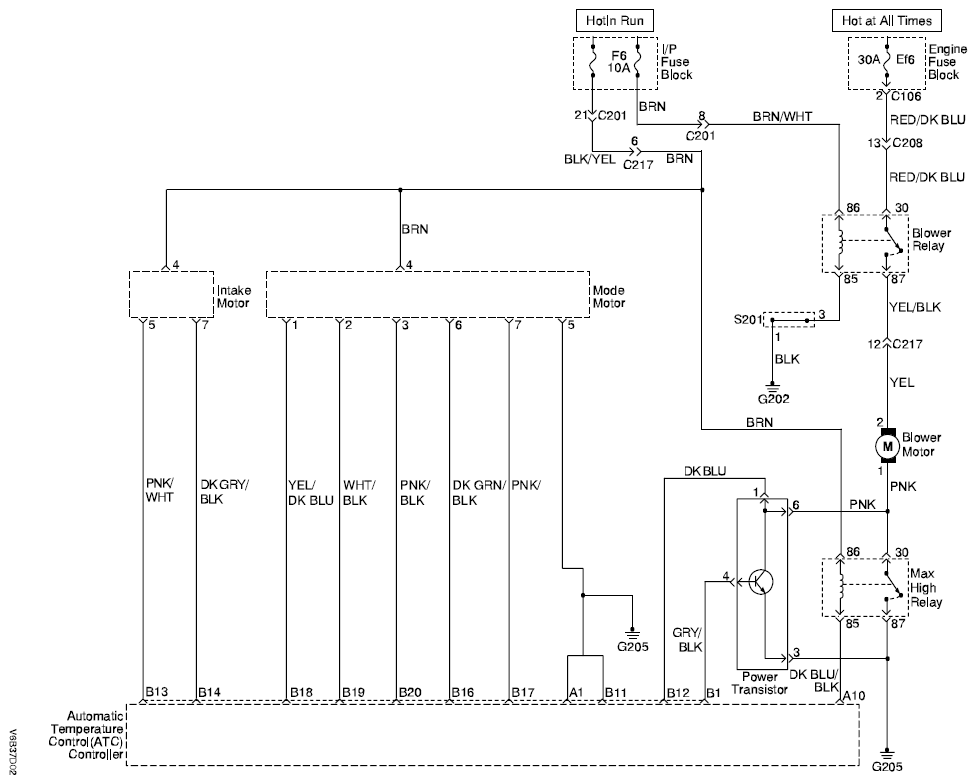

Fig 1: A/C Blower And Motor Controls Circuit Diagram
G04720086Courtesy of SUZUKI OF AMERICA CORP.
