Non-A/C System Diagrams

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

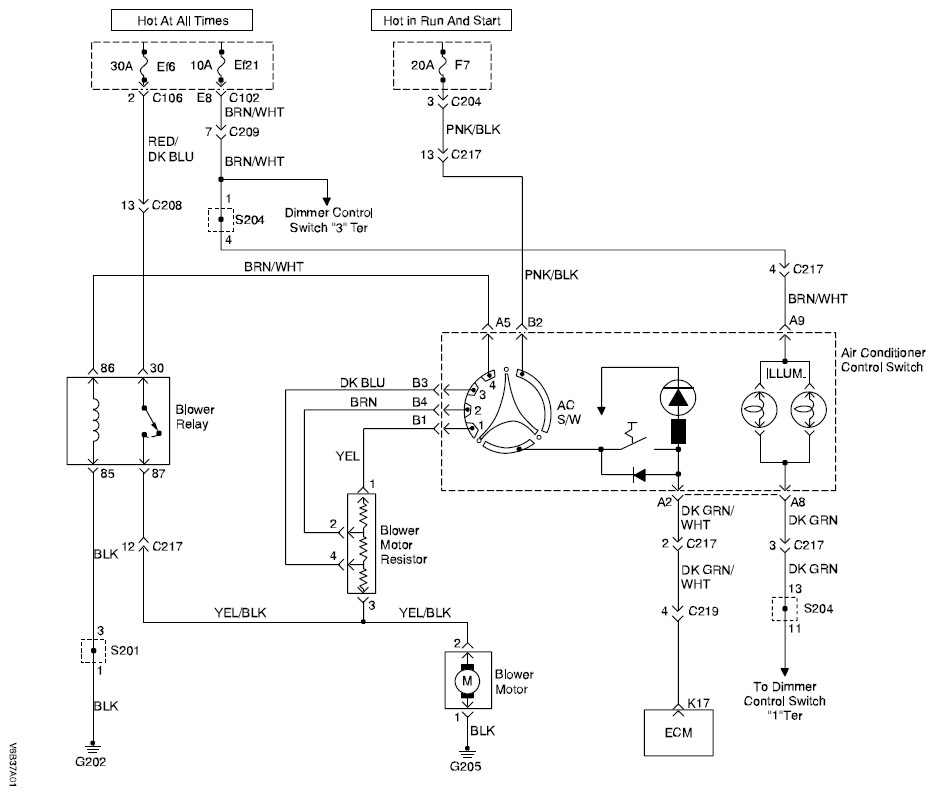

Fig 1: Non-A/C System Circuit Diagrams
G04720759Courtesy of SUZUKI OF AMERICA CORP.
