Heater Core Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel from the vehicle. Refer to INSTRUMENT PANEL REMOVAL .
Remove the wiring harness from the aircon - module.

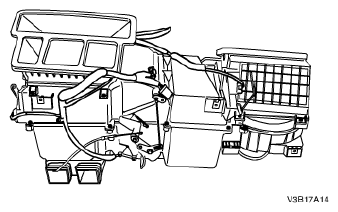

Fig 1: Identifying Wiring Harness And Aircon - Module
Courtesy of SUZUKI OF AMERICA CORP.
Slide the cable eyelet off the post on the temperature door lever.

Fig 2: Identifying Cable Eyelet And Temperature Door Lever
Courtesy of SUZUKI OF AMERICA CORP.
Remove the mode motor ventilation link.

Fig 3: Identifying Mode Motor Ventilation Link
Courtesy of SUZUKI OF AMERICA CORP.
Remove the air inlet case with the screws.

Fig 4: Identifying Air Inlet Case & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove the evaporator core case cover.

Fig 5: Removing Evaporator Core Case Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater core cover with the screws.

Fig 6: Identifying Heater Core Cover & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater core clip.

Fig 7: Removing Heater Core Clip
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater core from the case.

Fig 8: Identifying Heater Core
Courtesy of SUZUKI OF AMERICA CORP.
