Blower Motor Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor and the seal with the shock mount pads in the heater/air distributor case. Hold the blower motor in position.
  2. Install the screws to secure the blower motor to the heater/air distributor case.

    Tighten:

    Tighten the blower motor-to-heater/air distributor case screws to 6 N.m (53 lb-in.).

  3. Install the blower motor cooling hose.
  4. Connect the blower motor electrical connector.
  5. Connect the negative battery cable.
  6. Confirm that the blower motor operates properly.
  7. Install the footwell upper cover. Refer to INSTRUMENT PANEL INSTALLATION .
  8. Install the glove box. Refer to GLOVE BOX INSTALLATION .

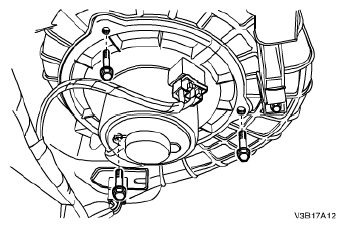

    Fig 1: Identifying Motor, Screws, Seal And Shock Mount Pads
    G04720783Courtesy of SUZUKI OF AMERICA CORP.
