Master Cylinder Assembly Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the master cylinder assembly with the mounting nuts.
Tighten:

Tighten the master cylinder mounting nuts to 13 N.m (115 lb-in.).

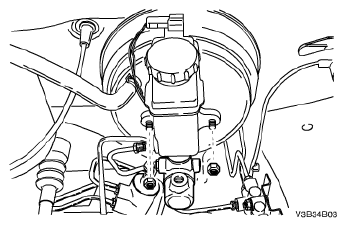

Fig 1: Removing/Installing Master Cylinder Mounting Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install the brake lines to the master cylinder body.
Tighten:

Tighten the master cylinder brake lines to 16 N.m (12 lb-ft).
Install the low brake fluid level switch by pushing it into the side of the brake fluid reservoir opposite the engine.

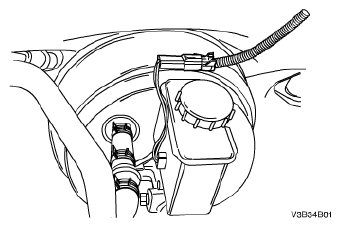

Fig 2: Removing/Installing Brake Fluid Level Switch And Wire Harness
Courtesy of SUZUKI OF AMERICA CORP.
Install the connector for the low brake fluid level switch by sliding it into its mount on the top of the brake fluid reservoir.
Connect the brake fluid level switch to the wiring harness.
Add the brake fluid.
Check for leaks.
Recheck the fluid level.
Bleed the brake system. Refer to Manual Bleeding the Brakes .

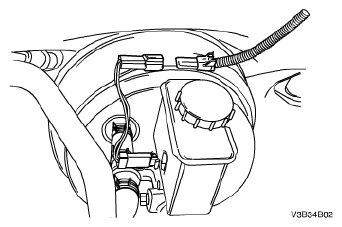

Fig 3: Identifying Harness Connector On Top Of Brake Fluid Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
