Inner Joint Seal Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install a new small seal retaining clamp onto the seal. Do not crimp the seal retaining clamp.
Install the seal onto the axle shaft.
Install the joint retaining ring and the joint onto the axle shaft.

Fig 1: Axle Shaft Seal
Courtesy of SUZUKI OF AMERICA CORP.

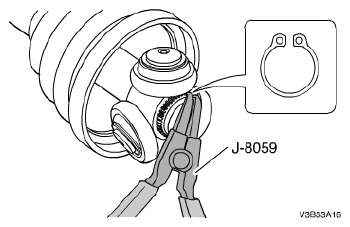

Install the shaft retaining ring onto the axle shaft using the snap ring pliers J-8059.

Fig 2: Axle Shaft Retaining Ring
Courtesy of SUZUKI OF AMERICA CORP.
Fill the joint housing with 170 - 190 g (6.0 - 6.7 ounces) of the recommended grease. Repack the tripod with 170 - 190 g (6.0 - 6.7 ounces) of the recommended grease.
Install the retaining ring and the joint housing onto the joint assembly.

Fig 3: Identifying Retaining Ring And Joint Housing
Courtesy of SUZUKI OF AMERICA CORP.
Install a new large seal retaining clamp. Crimp the large seal retaining clamp using the seal clamp pliers J-35566.
Crimp the new small seal retaining clamp using the seal clamp pliers J-35566.
Install the drive axle shaft to the vehicle. Refer to Drive Axle Assembly Installation .
