Wheel Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel cover.
  2. Loosen the wheel nuts.
  3. Raise and suitably support the vehicle.
  4. Remove the wheel nuts.
    CAUTION: Never use heat to loosen a tight wheel. It can shorten the life of the wheel, the wheel nuts, and the wheel bearings. Excessive force, such as hammering the wheel or tire, can also cause damage and is not recommended.
    Slight tapping of the wheel sidewall with one's hand or with a rubber mallet is acceptable.
  5. Remove the wheel and tire assembly.

    Difficulty in removing the wheels from the vehicle can be due to foreign material or to a tight fit between the wheel centerhole and the hub or the rotor. These wheels can be removed by

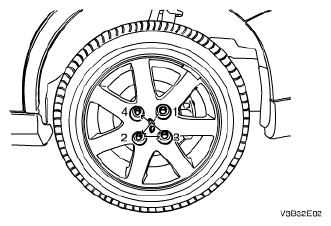

    Fig 1: Identifying Wheel And Tire Assembly
    G04719337Courtesy of SUZUKI OF AMERICA CORP.
  6. Retightening the wheel nuts on the affected wheel and then loosening the wheel nuts by 2 turns.
  7. Lowering the vehicle and rocking it from side to side as hard as possible, using one or more person's body weight to loosen the wheel.
  8. Raising the vehicle and removing the wheel.
    WARNING: Do not allow the penetrating oil to get on the vertical surfaces between the wheel and the drum (or rotor) because penetrating oil in this area could cause the wheel to work loose as the vehicle is driven, resulting in loss of control and an injury accident.

    Penetrating oil is not effective in removing tight wheels. If it is used, however, apply it sparingly and only to the wheel's centerhole area.
