DTC P2122 / P2123: Throttle / Pedal Position Sensor / Switch "D" Circuit Low / High: Wiring Diagram

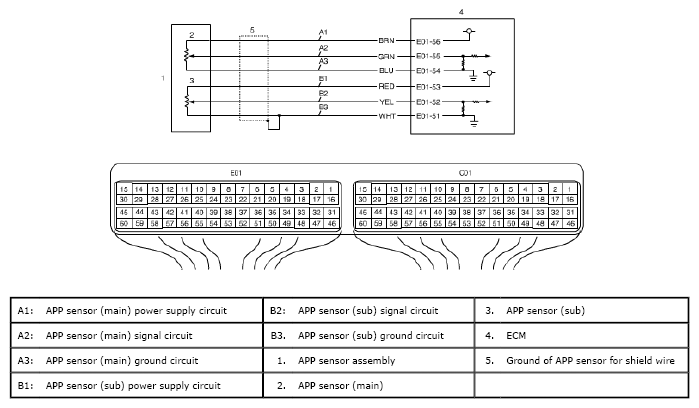

Fig 1: Throttle Pedal Position Sensor - Wiring Diagram (Low/High)
G04846592Courtesy of SUZUKI OF AMERICA CORP.
