DTC P1510: ECM Back-Up Power Supply Malfunction: Wiring Diagram

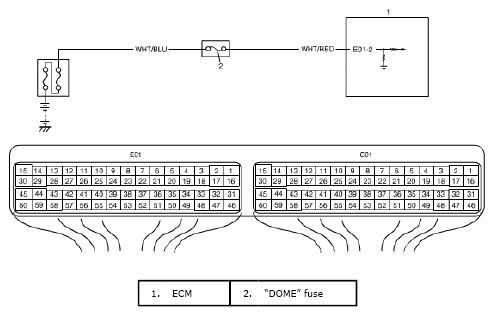

Fig 1: ECM - Wiring Diagram

G04846591

Courtesy of SUZUKI OF AMERICA CORP.
