DTC P0616 / P0617: Starter Relay Circuit Low / High: Wiring Diagram

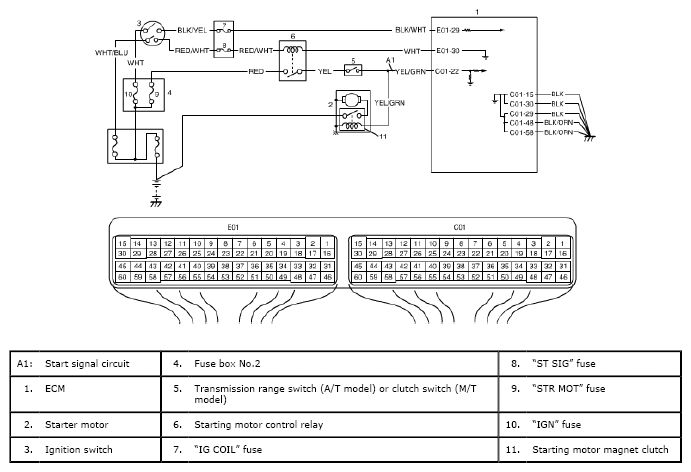

Fig 1: Starter Relay - Wiring Diagram (Low/High)
G04846584Courtesy of SUZUKI OF AMERICA CORP.
