DTC P0532 / P0533: A/C Refrigerant Pressure Sensor Circuit Low / High: Wiring Diagram

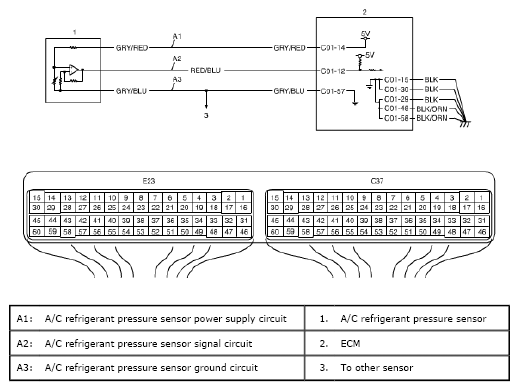

Fig 1: A/C Refrigerant Pressure Sensor - Wiring Diagram (Low/High)
G04846583Courtesy of SUZUKI OF AMERICA CORP.
