DTC P0335: Crankshaft Position Sensor "A" Circuit: Wiring Diagram

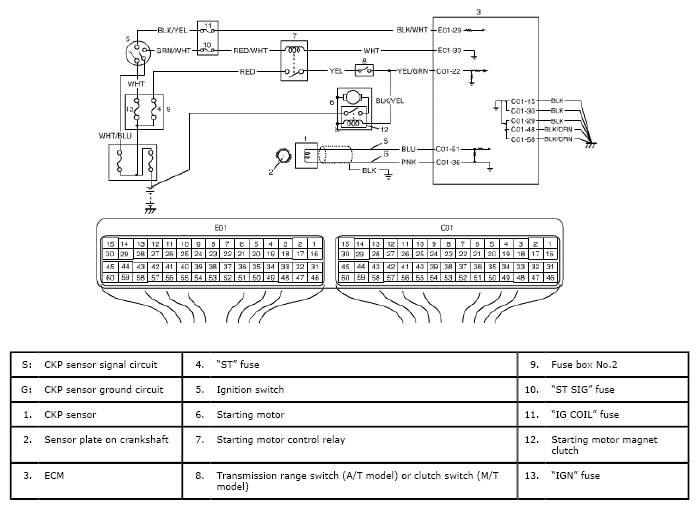

Fig 1: Crankshaft Position Sensor - Wiring Diagram
G04846568Courtesy of SUZUKI OF AMERICA CORP.
