Instrument Panel Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Disable air bag system referring to ADVANCED AIR BAG .
  3. Remove dash side trims (4) and steering column hole cover (1).
  4. Turn steering wheel to remove steering column cover screws (3).
  5. Remove steering column covers (2).
    Fig 1: Identifying Steering Column Cover And Screws
    G04848932Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove glove box (1).
  7. Remove hood latch release lever (2).
    Fig 2: Identifying Hood Latch Release Lever And Glove Box
    G04848933Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove console box referring to CONSOLE BOX COMPONENTS .
  9. Remove instrument panel center lower bracket bolts (1).
    Fig 3: Identifying Instrument Panel Center Lower Bracket Bolts
    G04848934Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove front pillar trims (1).

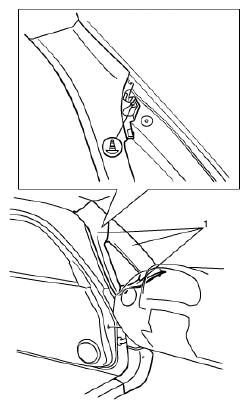

    Fig 4: Identifying Front Pillar Trims
    G04848935Courtesy of SUZUKI OF AMERICA CORP.
  11. Disconnect instrument panel harness connectors, heater control cables and antenna cable for instrument panel removal.
  12. Remove steering column assembly referring to STEERING COLUMN REMOVAL AND INSTALLATION .
  13. Remove instrument panel ground wire.
  14. Remove instrument panel mounting bolts (1).
  15. Remove instrument panel (2) with steering support member (3) and instrument panel harness.

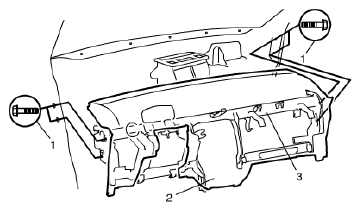

    Fig 5: Identifying Instrument Panel With Steering Support Member
    G04848936Courtesy of SUZUKI OF AMERICA CORP.
